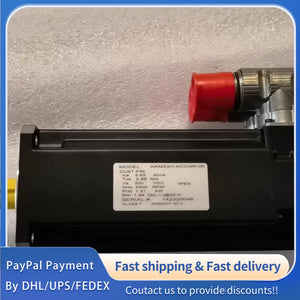

1 PCS used Kollmorgen AKM33H-ACCNR-00 Servo Motor #LYQ007
1 PCS used Kollmorgen AKM33H-ACCNR-00 Servo Motor #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Model | AKM33H-ACCNR-00 | - |
| Series | AKM | - |
| Winding Type | H | - |
| Max Bus Voltage | 320 | Vdc |
| Rated Power (at 320 Vdc) | 1.31 | kW |
| Rated Power (at 320 Vdc) | 1.75 | HP |
| Stall Torque | 2.88 | Nm |
| Stall Torque | 25.5 | lb‑in |
| Nominal Torque | 2.27 | Nm |
| Rated Speed | 5500 | rpm |
| Rated Current (Continuous, Stall) | 5.62 | Arms |
| Rotor Inertia | 0.850 | kg·cm² |
| Frame Size | AKM3 | - |
| Stack Length | 3 | - |
| Mounting | 70×70 mm IEC Flange (Tolerance N) | - |
| Feedback | Resolver / Encoder (Standard) | - |
| Connectors | 2×Angled Rotatable M23 | - |
| Protection | IP65 | - |
| Insulation Class | F (155 °C) | - |
| Weight (Approx.) | 3.3 | kg |
| Pole Count | 8 | - |
| Temperature Sensor | PTC Thermistor | - |
