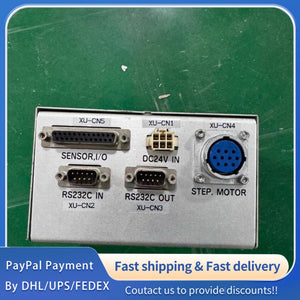

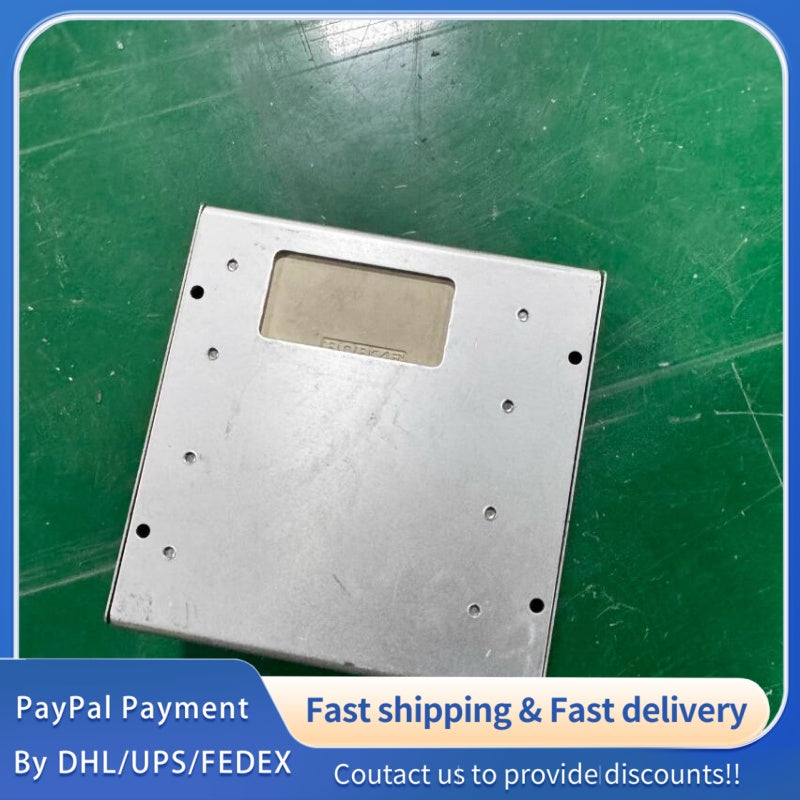

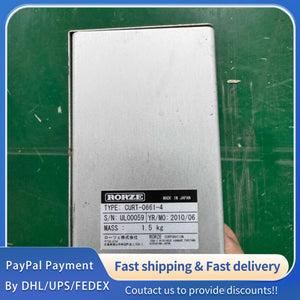

1 PCS used RORZE Stepper Motor Driver CURT-0661-4 #LYQ007
1 PCS used RORZE Stepper Motor Driver CURT-0661-4 #LYQ007
1 PCS used RORZE Stepper Motor Driver CURT-0661-4 #LYQ007
1. General Specifications (Original Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
Industrial Stepper Motor Driver
|
-
|
Original RORZE factory product, CURT-0661-4 model, specialized for precise control of stepper motors in industrial automation scenarios
|
|
Model Number
|
CURT-0661-4
|
-
|
Unique model code for RORZE CURT series stepper motor driver, consistent with factory calibration, quality standards and technical specifications
|
|
Brand & Manufacturer
|
RORZE Corporation
|
-
|
Complies with RORZE strict industrial stepper drive standards, ensuring high control precision, stable operation and long service life
|
|
Product Series
|
RORZE CURT Series
|
-
|
High-precision industrial stepper motor driver series, designed for harsh industrial environments, compatible with most RORZE stepper motors
|
|
Function Type
|
Stepper Motor Precision Control, Speed Regulation, Torque Control, Direction Control
|
-
|
Integrates multiple control functions, realizing real-time and precise control of stepper motor speed, torque and rotation direction
|
|
Control Mode
|
Pulse/Direction Control, CW/CCW Control
|
-
|
Supports two common control modes, easy to integrate into industrial automation control systems, flexible for different application scenarios
|
2. Electrical Performance Specifications (Ta = 25℃, RH = 60%, Standard Working Conditions)
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage Range (DC)
|
20
|
24
|
30
|
VDC
|
Wide voltage input, anti-voltage fluctuation, compatible with standard industrial 24VDC power supply system
|
|
Operating Current (DC, 24VDC)
|
0.3
|
0.5
|
0.7
|
A
|
Low power consumption design, supporting long-term continuous operation under full load without performance degradation
|
|
Power Consumption
|
7.2
|
12
|
16.8
|
W
|
Low power consumption, energy-saving, reducing industrial power consumption costs while ensuring stable control performance
|
|
Output Current Range
|
0.5
|
3.0
|
6.0
|
A
|
Adjustable output current, compatible with different power stepper motors, meeting diverse load requirements
|
|
Pulse Input Frequency
|
1
|
10
|
100
|
kHz
|
Wide pulse frequency range, supporting high-speed and precise positioning control of stepper motors
|
|
Pulse Input Voltage
|
4.5
|
5
|
5.5
|
VDC
|
Compatible with standard TTL pulse signal input, ensuring accurate pulse signal collection and stable control
|
|
Insulation Resistance
|
100
|
500
|
-
|
MΩ
|
High insulation performance, effectively preventing short circuit and leakage, ensuring equipment and personnel safety
|
3. Protection Specifications
|
Parameter
|
Protection Threshold
|
Recovery Mode
|
Unit
|
Official Notes
|
|
Over-Voltage Protection (OVP)
|
32-34
|
Auto-Recovery
|
VDC
|
Triggered when power input voltage exceeds threshold, protecting the driver from over-voltage damage
|
|
Over-Current Protection (OCP)
|
7.0-7.5
|
Auto-Recovery
|
A
|
Prevents driver damage caused by excessive output current, compatible with short-term current fluctuation
|
|
Over-Temperature Protection (OTP)
|
80-85
|
Auto-Recovery
|
℃
|
Triggered when internal temperature is too high, avoiding thermal damage to internal components and control circuits
|
|
Short-Circuit Protection (SCP)
|
Instant Trigger
|
Manual Recovery
|
-
|
Fast response to internal short circuit or output short circuit, cutting off power immediately to protect the driver and connected motor
|
|
ESD Protection
|
±4
|
Auto-Recovery
|
kV
|
Effective ESD protection, adapting to static electricity in industrial workshops, preventing control failure or component damage
|
