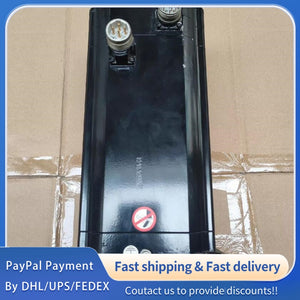

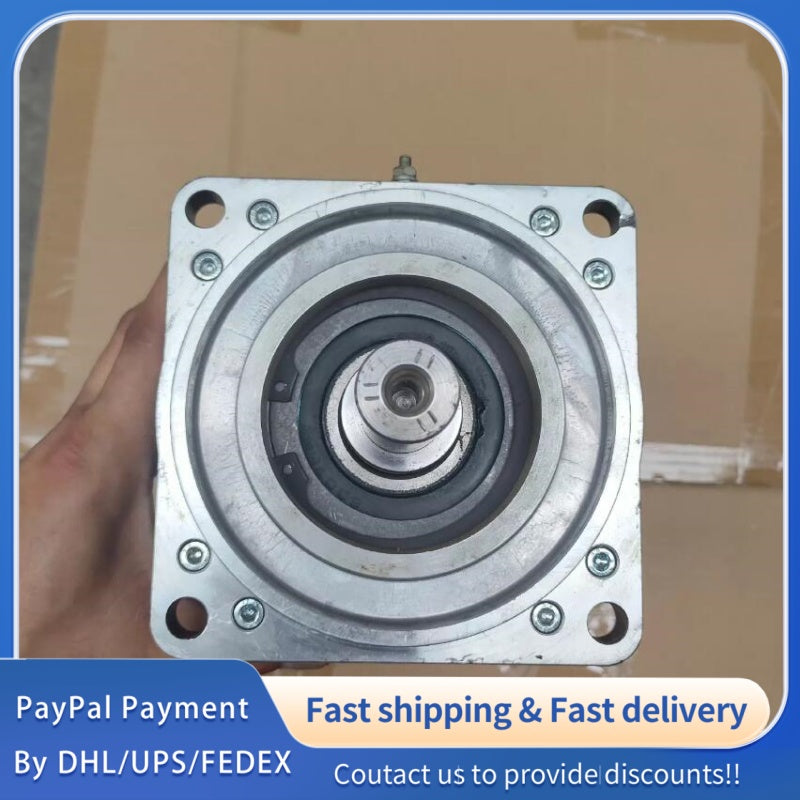

1 PCS used Schneider Electric Servo Motor BSH1402P01A1A #LYQ007
Parameter
Specification
Manufacturer
Schneider Electric (Lexium BSH Series)
Model
BSH1402P01A1A
Motor Type
3‑phase AC synchronous servo motor
Frame Size
140 mm (IEC standard)
Cooling
Natural convection
Holding Brake
Without
Protection Class
Shaft: IP54; Housing: IP65
Mounting
IEC standard flange
Weight
16.6 kg (36.6 lb)
Parameter
Specification
Nominal Continuous Torque (Mn)
19.5 Nm
Peak Torque (Mmax)
60.1 Nm
Nominal Speed (Nn)
Up to 3600 rpm (voltage‑dependent)
Nominal Power (Pn)
Up to 3.66 kW (voltage‑dependent)
Number of Poles
10
Rotor Inertia (J)
12.68 kg·cm²
Parameter
Specification
Stator Resistance (R)
0.6 Ω @ 20 °C
Stator Inductance (L)
7.4 mH @ 20 °C
Electrical Time Constant
12.33 ms @ 20 °C
Back EMF Constant (Ke)
101 V/krpm @ 120 °C
Encoder Type
Single‑turn SinCos Hiperface
Encoder Resolution
128 periods/rev (128×1024)
Electrical Connection
2×M23 straight connectors
