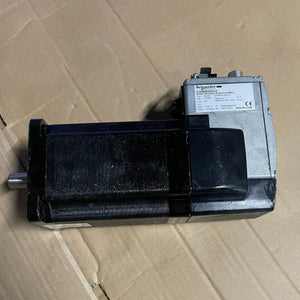

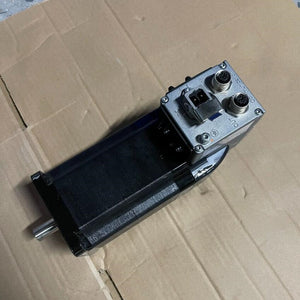

1 PCS used Schneider ILS2E853S2213 Integrated Stepper Motor #LYQ007
1 PCS used Schneider ILS2E853S2213 Integrated Stepper Motor #LYQ007
| Parameter | Value |
|---|---|
| Model | ILS2E853S2213 |
| Product Type | Lexium ILS integrated drive with stepper motor |
| Motor Type | 3‑phase stepper motor |
| Number of Poles | 6 |
| Supply Voltage | 24 / 48 VDC |
| Voltage Range | 18 … 55 VDC |
| Max. Continuous Current | 6 A |
| Nominal Torque | 4.5 N·m (39.83 lbf·in) |
| Holding Torque | 4.5 N·m (39.83 lbf·in) |
| Nominal Speed | 200 rpm @ 24 V; 400 rpm @ 48 V |
| Max. Mechanical Speed | 3000 rpm |
| Feedback Resolution | 20,000 points/turn |
| Positioning Accuracy | ±6 arc min |
| Rotor Inertia | 3.3 kg·cm² |
| Communication | EtherCAT (100 Mbit/s) |
| I/O Interface | 4 configurable I/O (24 V) |
| Commissioning | RS485 Modbus (9.6/19.2/38.4 kbaud) |
| Protection | Safe Torque Off (STO), overload, short‑circuit |
| Flange Size | 85 mm (3.35 in) |
| Shaft Diameter | 14 mm (0.55 in) |
| Shaft Length | 30 mm (1.18 in) |
| Weight | ~4.7 kg (10.36 lb) |
| Insulation Class | B |
| Operating Temp. | 0 … +50 °C |
| Protection Rating | IP41 (housing) |
