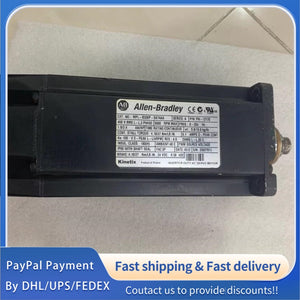

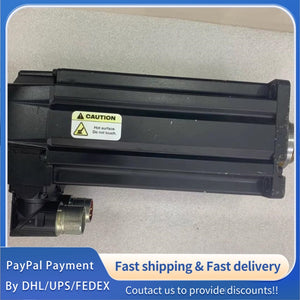

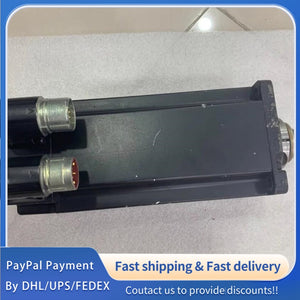

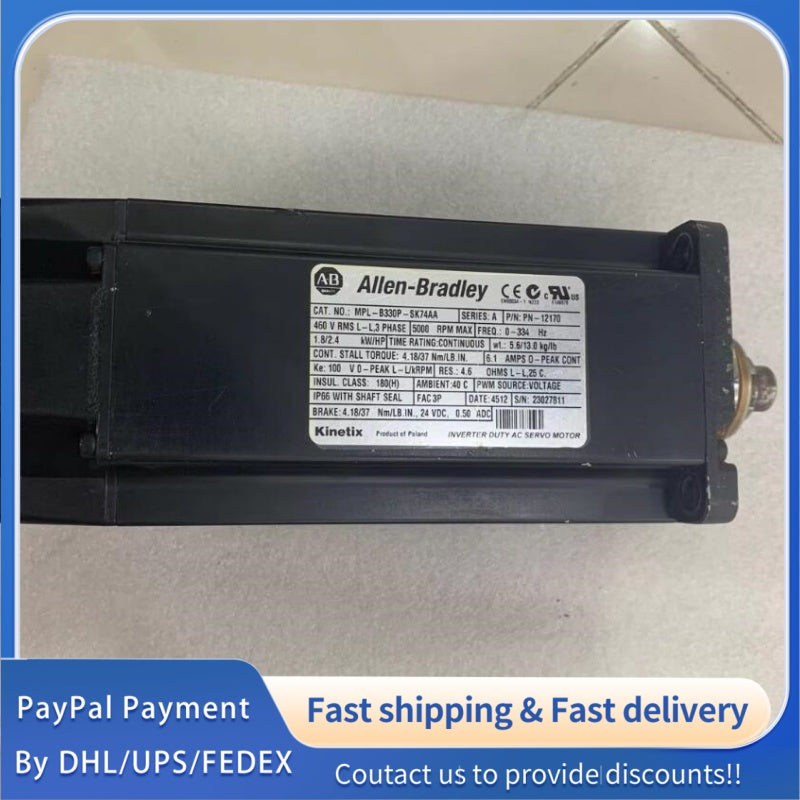

1 PCS used Allen‑Bradley MPL‑B330P‑SK74A Servo Motor #LYQ007
1 PCS used Allen‑Bradley MPL‑B330P‑SK74A Servo Motor #LYQ007
| Parameter Category | Parameter Name | MPL‑B330P‑SK74A Specification |
|---|---|---|
| General Information | Manufacturer | Allen‑Bradley (Rockwell Automation) |
| Model Number | MPL‑B330P‑SK74A | |
| Series | MP‑Series MPL (Low‑Inertia) | |
| Motor Type | Brushless AC Servo Motor | |
| Duty Cycle | S1 (Continuous) | |
| Lifecycle Status | ActiveRockwell Automation | |
| Electrical Parameters | Rated Voltage | 460 V AC |
| Rated Power | 1.8 kW | |
| Rated Speed | 5000 rpm | |
| Continuous Stall Torque | 4.18 N‑m | |
| Peak Stall Torque | 11.1 N‑m | |
| Continuous Current (0‑pk) | 6.1 A | |
| Peak Current (0‑pk) | 19.0 A | |
| Number of Phases | 3‑phase | |
| Rated Frequency | 50/60 Hz | |
| Brake Option | 24 V DC Brake | |
| Mechanical Parameters | Frame Size | 3 = 100 mm (3.94 in.) |
| Magnet Stack Length | 30 = 76.2 mm (3.0 in.) | |
| Rotor Inertia | 0.00012 kg‑m² (0.0010 lb‑in‑s²) | |
| Shaft | Keyless, no shaft seal | |
| Mounting | IEC Metric, Free Mounting Holes (Type FF) | |
| Weight | — (Factory standard) | |
| Feedback & Connectors | Feedback Device | Single‑turn High‑resolution Encoder |
| Connector Type | SpeedTEC DIN, Right Angle, 180° Rotatable | |
| Environmental & Protection | Operating Temperature | 0 °C to +40 °C |
| Storage Temperature | — (Factory standard) | |
| Humidity | 0–95% RH (non‑condensing) | |
| Protection Rating | IP50 (housing); IP66 (with optional shaft seal) | |
| Vibration Resistance | — (Factory standard) | |
| Shock Resistance | — (Factory standard) | |
| Performance & Compatibility | Compatible Drives | Kinetix 300/350, 6000, 6200/6500, 7000, Ultra 3000 |
| Insulation Class | — (Factory standard) | |
| Service Life | — (Factory standard) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
