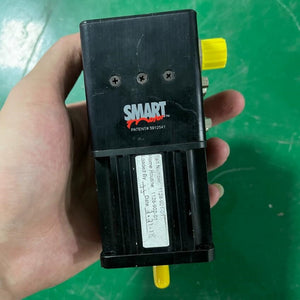

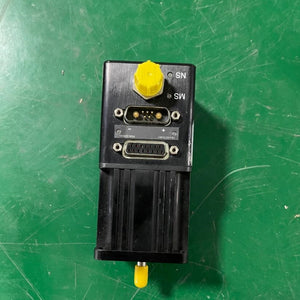

1 PCS used MOOG SmartMotor SM2320D-DN2PLS-F2 #LYQ007
1 PCS used MOOG SmartMotor SM2320D-DN2PLS-F2 #LYQ007
| Parameter | Value | Unit |
|---|---|---|
| Part Number | SM2320D-DN2PLS-F2 | - |
| Product Line | SmartMotor™ Class 5 D-Style | - |
| Frame Size | NEMA 23 | - |
| IP Rating | IP50 | - |
| Continuous Torque | 0.33 | N·m |
| 2.96 | in-lb | |
| 47 | oz-in | |
| Peak Torque | 0.57 | N·m |
| 5.03 | in-lb | |
| 64.3 | oz-in | |
| Nominal Continuous Power | 226 | W |
| No-Load Speed | 8,100 | RPM |
| Voltage Rating | 48 | VDC |
| Encoder Type | Multi-turn Absolute (Battery-less) | - |
| Encoder Resolution | 12-bit (4096 counts/rev) | counts/rev |
| Communication | DeviceNet (DN), RS-232, CAN | - |
| Operating Temperature | -20 to +100 | °C |
| Weight | 0.75 | kg |
| Length | 120.7 | mm |
| Shaft Diameter | 6.35 | mm |
| Shaft Keyway | 2.38 x 1.59 | mm |
| Axial Thrust Load | 1.36 | kg |
| Radial Load (at shaft end) | 5.4 | kg |
| I/O Voltage | 24 | VDC |
| Logic Backup Supply | 24 | VDC |
| Features | Integrated Controller, Amplifier, Encoder | - |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
