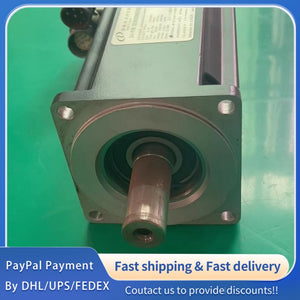

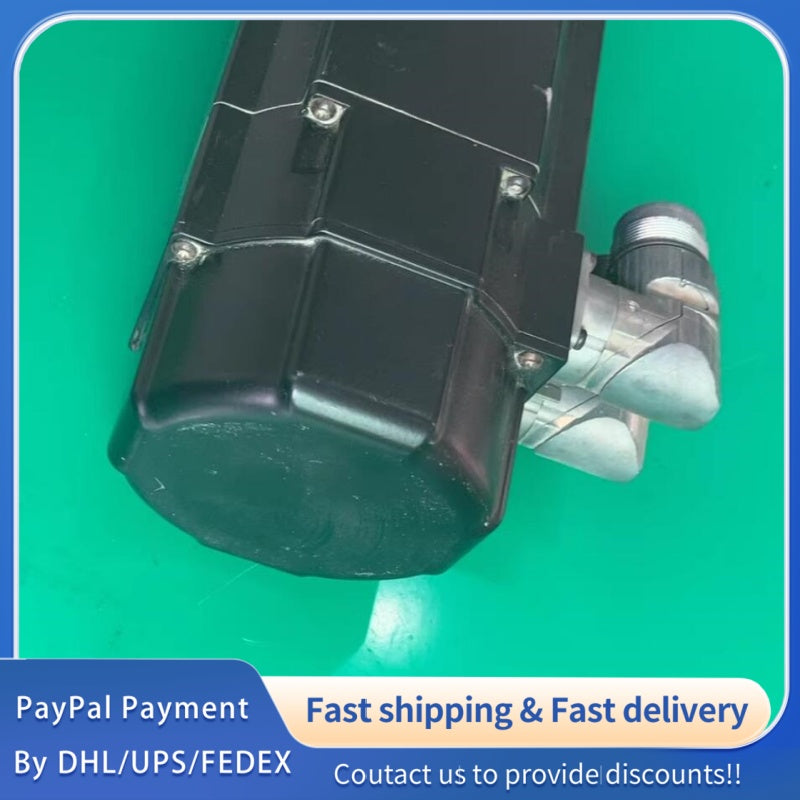

1 PCS used Kollmorgen AKM44G-ANC2R-00 Servo Motor #LYQ007
1 PCS used Kollmorgen AKM44G-ANC2R-00 Servo Motor #LYQ007
| Parameter | Symbol | Unit | Value |
|---|---|---|---|
| Motor Type | — | — | 3‑Phase Brushless Permanent Magnet Synchronous Servo |
| Frame Size | — | — | AKM4 (84 mm IEC Flange, Tolerance N) |
| Stack Length | — | — | 4 |
| Winding | — | — | G |
| Max DC Bus Voltage | Vbus | Vdc | 640 |
| Max AC Mains Voltage | — | Vac | 480 |
| Continuous Stall Torque (ΔT=100°C) | Tcs | Nm | 4.9 |
| Rated Torque | Trated | Nm | 2.8 |
| Peak Torque | Tp | Nm | 20.4 |
| Rated Power | Prated | kW | 1.67 |
| Max Rated Speed | Nmax | rpm | 6000 |
| Rated Speed | Nrated | rpm | 5790 |
| Pole Pairs | — | — | 5 (10 Poles) |
| Weight | — | kg | 5.3 |
| Rotor Inertia | J | kg·cm² | ~2.76 |
| Feedback | — | — | Resolver (2‑Pole, Single‑Turn, Inductive) |
| Connector | — | — | 2 × Angled Rotatable M23 SpeedTec Ready |
| Protection | — | — | IP65 |
| Insulation Class | — | — | F (IEC 60085) |
| Ambient Temp Range | — | °C | 0 to +40 |
| Max Altitude | — | m | 1000 |
| Humidity | — | % | 5–95 (non‑condensing) |
| Bearing Life | — | h | 20,000 |
| Certifications | — | — | CE, cURus, TUV, EN 60034‑1/‑5 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
