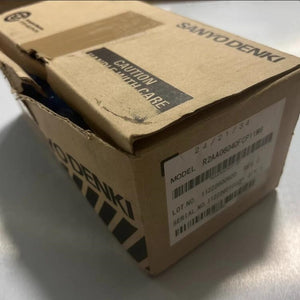

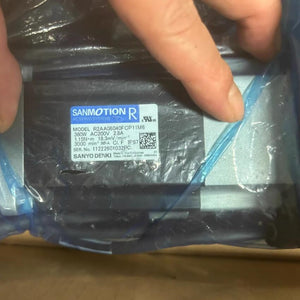

1 PCS new SANYO DENKI R2AA06040FCP11M6 Servo Motor #LYQ007
1 PCS new SANYO DENKI R2AA06040FCP11M6 Servo Motor #LYQ007
| Parameter | Value |
|---|---|
| Model Number | R2AA06040FCP11M6 |
| Series | SANMOTION R (AC Servo Motor) |
| Motor Type | Rotary, Medium Inertia |
| Rated Output | 0.4 kW (400W) |
| Rated Voltage | 200 VAC |
| Rated Current | 2.8 A |
| Rated Torque | 1.27 N·m |
| Continuous Stall Torque | 1.37 N·m |
| Maximum Instantaneous Torque | 4.8 N·m |
| Rated Speed | 3000 min⁻¹ (rpm) |
| Maximum Speed | 6000 min⁻¹ (rpm) |
| Rotor Inertia | 0.412 × 10⁻⁴ kg·m² (GD²/4) |
| Encoder Inertia | 0.0042 × 10⁻⁴ kg·m² (GD²/4) |
| Encoder Type | Absolute Encoder (with battery backup) |
| Encoder Resolution | 17 bit (131072 P/R) |
| Brake | 24 V DC Holding Brake |
| Frame Size (Flange) | 60 mm Square |
| Weight | Approx. 1.81 kg |
| Protection | Standard (Non IP65/IP67) |
| Shaft Style | Straight Output Shaft |
| Connection | Connector Type (Cable Connection) |
