1PCS NEW YASKAWA PG Card 73600‑A0140 for CIMR‑P1Y Inverter PG‑B2/PG‑X2 #PJ008

Sale price $900.00
40 People are viewing this right now
Add to Wishlist
Add to Compare

1PCS NEW YASKAWA PG Card 73600‑A0140 for CIMR‑P1Y Inverter PG‑B2/PG‑X2 #PJ008
1PCS NEW YASKAWA PG Card 73600‑A0140 for CIMR‑P1Y Inverter PG‑B2/PG‑X2 #PJ008
Sale price$900.00
1PCS NEW YASKAWA PG Card 73600‑A0140 for CIMR‑P1Y Inverter PG‑B2/PG‑X2 #PJ008

1PCS NEW YASKAWA PG Card 73600‑A0140 for CIMR‑P1Y Inverter PG‑B2/PG‑X2 #PJ008

$900.00

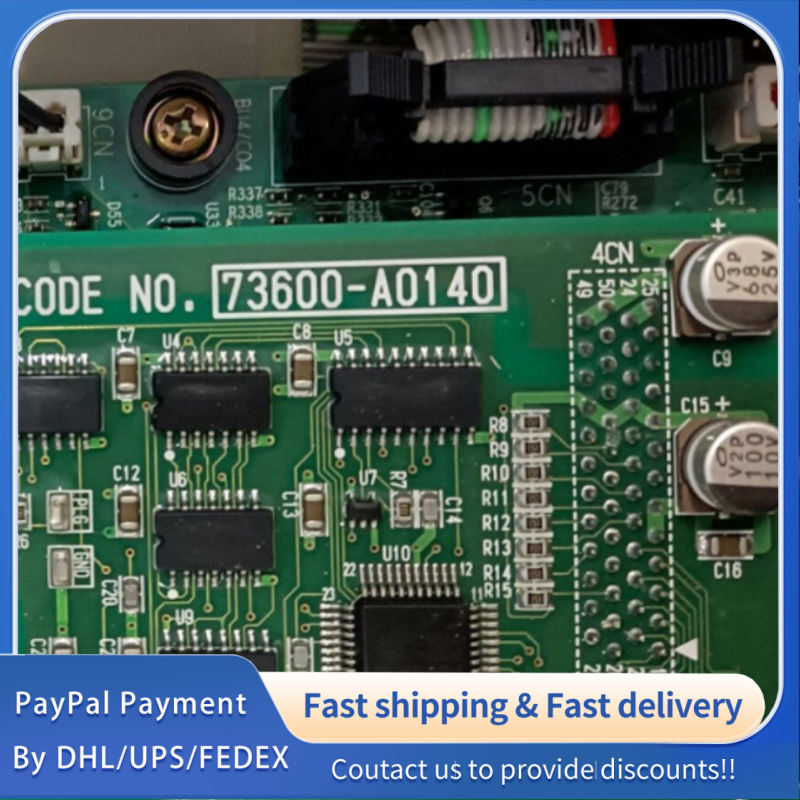

This is a dedicated incremental encoder feedback card (often PG‑B2/PG‑X2 series replacement) for Yaskawa CIMR‑P1Y inverters, enabling closed‑loop vector control and precise speed feedback. Below is the full English spec sheet and Shopify‑ready key selling points:

Core Specifications & Compatibility

Category Key Details Remarks
Compatible Drive CIMR‑P1Y series (all power ratings) Must match drive firmware version
Signal Type Incremental encoder ABZ 3‑phase differential input Supports open‑collector/differential (line driver) outputs
Electrical Ratings +12V DC rated voltage; ≤200kHz max signal frequency; ≤200mA rated current Works with standard 12V incremental encoders
Key Functions Speed closed‑loop feedback, rotation direction detection, frequency division output Enables zero servo, torque compensation, and high‑precision speed regulation
Mechanical Dedicated control board slot; #PJ008 = batch/version code Lock firmly to prevent loosening from vibration
Certifications CE, UL, RoHS Complies with industrial safety and environmental standards

Setup & Parameter Configuration (CIMR‑P1Y)

  1. Wiring
    • Terminals: A+, A‑, B+, B‑, Z+, Z‑, +12V, CM (common)
    • Use shielded cables; connect shield to drive PE at one end. Separate from power cables to avoid EMI.
  2. Parameter Settings
    • H3‑02 = 1 (PG card type selection)
    • H3‑03 = encoder pulse count
    • H3‑04 = line count/frequency division ratio
    • Incorrect settings may trigger PG alarms (e.g., OPE01). Verify against motor nameplate and encoder specs.
  3. Interchangeability
    • Interchangeable with some batches of PG‑B2 (73600‑A0131/73600‑A0135) and PG‑X2 for CIMR‑P1Y. Confirm via Yaskawa’s official spare parts list.
