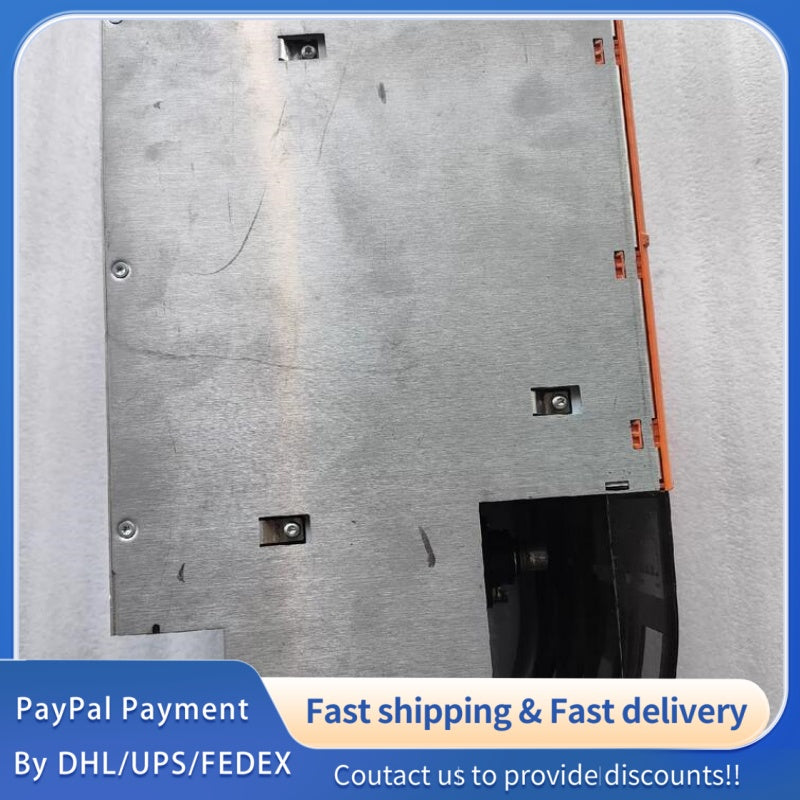

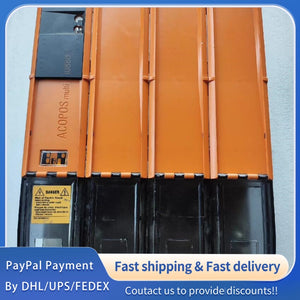

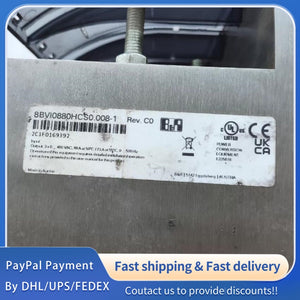

1 PCS used B&R 8BVI0880HCS0.008-1 Inverter Module #LYQ007
1 PCS used B&R 8BVI0880HCS0.008-1 Inverter Module #LYQ007
| Parameter | Value |
|---|---|
| General Information | |
| Product Type | ACOPOSmulti inverter module, single-axis |
| Mounting Type | Cold plate or feed-through mounting |
| Certifications | CE, UKCA, cULus (E225616), Functional Safety (openSAFETY) |
| Module Width | 4 slots (213.5 mm) |
| Weight | Approx. 7.8 kg |
| DC Bus Connection | |
| Nominal DC Bus Voltage | 750 VDC |
| Max. DC Bus Voltage | 800 VDC |
| DC Bus Capacitance | 1980 µF |
| Continuous Power Consumption | 65 kW |
| 24 VDC Power Supply (Input) | |
| Input Voltage | 25 VDC ±1.6% |
| Input Capacitance | 32.9 µF |
| Max. Power Consumption | 33 W + P<sub>SMC1</sub> + P<sub>SLOT2</sub> + P<sub>24V Out</sub> + P<sub>HoldingBrake</sub> |
| 24 VDC Output | |
| Number of Outputs | 2 |
| Output Voltage (315–800 VDC Bus) | 24 VDC ±6% |
| Fuse Protection | 250 mA (slow-blow), electronic, auto-reset |
| Motor Connection | |
| Number of Motor Connections | 1 |
| Continuous Power per Motor | 64 kW |
| Continuous Current (I<sub>eff</sub>) | 88 A<sub>eff</sub> |
| Peak Current (I<sub>peak</sub>) | 176 A<sub>eff</sub> |
| Nominal Switching Frequency | 5 kHz |
| Switching Frequency Range | 5 / 10 / 20 kHz |
| Max. Output Frequency | 598 Hz |
| Max. Motor Cable Length | 25 m (all switching frequencies) |
| Connection Type | M8 threaded bolts (U, V, W, PE) |
| Motor Holding Brake | |
| Output Voltage | 24 VDC +5.8% / -0.5% |
| Continuous Current | 4.2 A |
| Max. Internal Resistance | 0.15 Ω |
| Max. Extinction Energy | 3 Ws per operation |
| Encoder Interface | |
| Type | EnDat 2.2 |
| Connector | 9-pin female DSUB |
| Max. Encoder Cable Length | 100 m |
| Trigger Inputs | |
| Number of Inputs | 2 (sink type) |
| Nominal Input Voltage | 24 VDC |
| Switching Threshold | Low <5 V; High >15 V |
| Input Current | Approx. 10 mA @ 24 VDC |
| Switching Delay | 52 µs (rising), 53 µs (falling) |
| Operating Conditions | |
| Ambient Temperature (Operation) | 5 to 40°C (max. 55°C) |
| Storage Temperature | -25 to 55°C |
| Transport Temperature | -25 to 70°C |
| Relative Humidity | 5–85% (non-condensing) |
| Max. Installation Altitude | 4000 m (derated above 500 m) |
| Protection Class | IP20 |
| Pollution Degree | 2 (EN 61800-5-1) |
| Overvoltage Category | III (EN 61800-5-1) |
| Mechanical Dimensions | |
| Width | 213.5 mm |
| Height | 317 mm |
| Depth (Cold Plate) | 212 mm |
| Depth (Feed-Through) | 209 mm |
