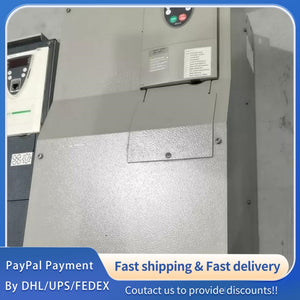

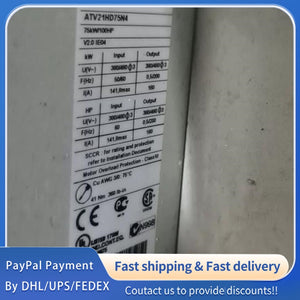

1 PCS used Schneider Electric ATV21HD75N4 inverter #LYQ007
1 PCS used Schneider Electric ATV21HD75N4 inverter #LYQ007
| Parameter | Value |
|---|---|
| Product Range | Altivar 21 |
| Product Type | Variable Speed Drive |
| Application | Variable Torque (Pumps & Fans, HVAC) |
| Motor Power | 75 kW / 100 HP |
| Frame Size | 8A |
| Input Voltage | 380–480 VAC, 3-phase |
| Input Frequency | 50/60 Hz (±5%) |
| Nominal Input Current | 111.3 A @ 480 V; 141.8 A @ 380 V |
| Continuous Output Current | 160 A @ 380–460 V |
| Max Transient Current | 176 A (60 s) |
| Output Frequency | 0.5–200 Hz |
| Switching Frequency | 6–16 kHz (adjustable); 8–16 kHz with derating |
| Nominal Switching Frequency | 8 kHz |
| Control Modes | V/F, Flux Vector Control (FVC), Energy Saving |
| Transient Overtorque | 120% of nominal motor torque (60 s) |
| Speed Range | 1:10 |
| Speed Accuracy | ±10% of nominal slip (0.2 Tn to Tn) |
| Torque Accuracy | ±15% |
| IP Rating | IP20 (upper part) |
| EMC Filter | Class A (integrated) |
| Communication | Modbus RTU (RS485, RJ45) |
| Communication Baud Rate | 9600 / 19200 bps |
| Dimensions (H×W×D) | 630 × 320 × 290 mm |
| Weight | 125 lbs (56.7 kg) |
| Ambient Temp (Operation) | -10 to +40 °C (no derating); 40–50 °C (derated) |
| Ambient Temp (Storage) | -25 to +70 °C |
| Relative Humidity | 5–95% (non-condensing) |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Overtemperature, Phase Loss, Motor Thermal (PTC) |
| Certifications | CE, CSA, UL, EN 55011, IEC 61800-3/-5-1 |
| Warranty | 18 months |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
