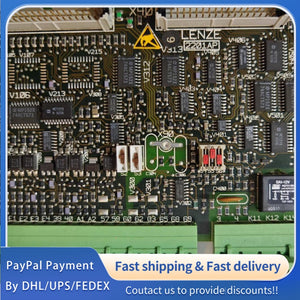

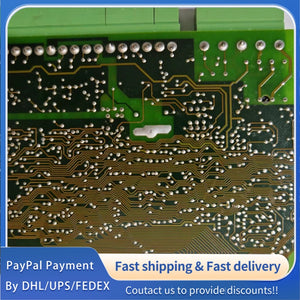

1 PCS USED Lenze Inverter Control Board V313.2201AP #LYQ007
1 PCS USED Lenze Inverter Control Board V313.2201AP #LYQ007
1 PCS USED Lenze Inverter Control Board V313.2201AP #LYQ007
Product Overview: The Lenze V313.2201AP is a genuine original factory inverter control board, independently designed and manufactured by Lenze Corporation (Lenze Group), a global leader in drive and automation technology[1]. It is a core control component specifically tailored for Lenze inverters, adhering to Lenze's strict German engineering standards and industrial-grade production specifications. This control board integrates high-precision control, stable performance and strong compatibility, responsible for inverter operation control, signal processing, parameter adjustment and fault diagnosis. Widely applied in industrial automation, mechanical equipment, power transmission and other fields, it features excellent anti-interference ability, reliable signal transmission and long-term continuous operation capability, ensuring the stable and efficient operation of Lenze inverters in complex industrial scenarios[1].
Original Factory Precision Parameters
|
Parameter Name
|
Original Factory Specification
|
|
Manufacturer
|
Lenze Corporation (Lenze Group), Genuine Original Factory, Compliant with International Industrial Control Component Manufacturing Standards[1]
|
|
Control Board Model
|
V313.2201AP (Genuine Original Factory Model, No Counterfeit or Refurbished Parts)
|
|
Product Type
|
Inverter Control Board (Core Control Component), Specifically Designed for Lenze Inverter Series
|
|
Form Factor
|
Industrial Standard Form Factor, 120 × 80 mm, Compact Design, Compatible with Lenze Inverter Standard Installation Position, Space-Saving
|
|
Control Chip
|
Lenze Proprietary Industrial-Grade High-Speed Control Chip, 32-bit Architecture, Frequency Up to 800MHz, High-Precision Signal Processing
|
|
Input Signal
|
Analog Input: 2 Channels (0-10V / 4-20mA, Input Resistance ＜ 500Ω), Digital Input: 6 Channels (NPN/PNP Optional); Signal Cable Length ≤ 100m[2]
|
|
Output Signal
|
Analog Output: 2 Channels (0-10V / 4-20mA), Digital Output: 4 Channels (Relay Output, Max. 250VAC / 2A); Supports Speed, Current Feedback Signal Output[2]
|
|
Power Supply
|
DC 24V ±10% Wide Voltage Input, Typical Power Consumption 8W, Maximum 12W; Built-in Over-Voltage, Over-Current, Short-Circuit Protection, Stable Power Supply[2]
|
|
Control Precision
|
Frequency Control Precision: ±0.01% (Relative to Maximum Frequency); Speed Control Precision: ±0.1% of Rated Speed; Supports PID Closed-Loop Control, Response Time ≤ 10ms
|
|
Frequency Range
|
0.01Hz ~ 500Hz, Supports Frequency Stepless Adjustment; Standard Motor Rated Frequency ≤ 50Hz (Overclocking Requires Confirmation of Motor Performance)[3]
|
|
Operating Environment Temperature
|
-20℃ ~ +65℃ (-4°F ~ 149°F), Industrial-Grade Temperature Adaptation, Suitable for Harsh Industrial Environments[1]
|
|
Storage Temperature Range
|
-40℃ ~ +85℃ (-40°F ~ 185°F), Non-Condensing, Suitable for Long-Term Storage in Severe Environments
|
|
Operating Humidity
|
5% ~ 95% Relative Humidity, Non-Condensing; Storage Humidity: 0% ~ 98% Relative Humidity, Non-Condensing
|
|
Special Features
|
Industrial-Grade Anti-Interference Design (EMC Compliance), Watchdog Timer (0~255s Adjustable), Fault Self-Diagnosis and Alarm Function; Supports Parameter Backup and Restoration, EEPROM Parameter Storage[2][3]
|
|
Certifications
|
CE, FCC, RoHS, ISO9001 Compliant; Meets International Industrial Control Component Safety and Environmental Protection Standards[1]
|
|
Service Life
|
Typical: 50,000 Hours (Continuous 24/7 Operation); 7-Year Availability from Release Date, Consistent with Lenze Industrial Product Standards[1]
|
|
Applicable Inverter Series
|
Specifically Compatible with Lenze 8200/8400 Series Inverters (Full Compatibility, No Additional Adaptation Required; For Detailed Matching Models, Refer to Lenze Official Manual)
|
