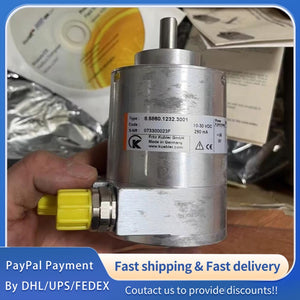

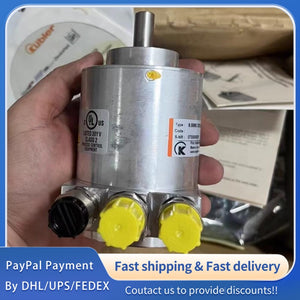

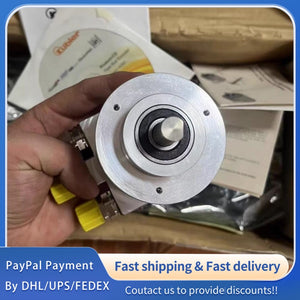

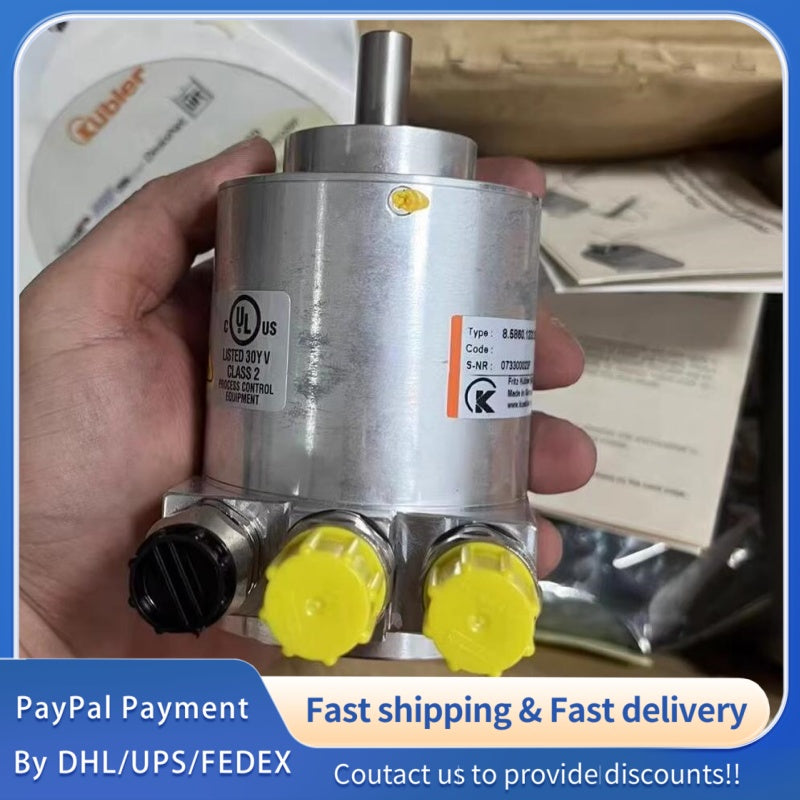

1 PCS used Kübler 8.5860.1232.3001 Encoder #LYQ007
1 PCS used Kübler 8.5860.1232.3001 Encoder #LYQ007
| Parameter | Value |
|---|---|
| Model | 8.5860.1232.3001 |
| Type | Absolute Multiturn Encoder, Profibus-DP Interface |
| Housing | Ø 58 mm, solid shaft with flat surface |
| Scanning | Optical |
| Singleturn Resolution | 13 bits (8192 divisions/rev)Kübler Group |
| Multiturn Resolution | 12 bits (4096 revolutions)Kübler Group |
| Total Resolution | 25 bits |
| Linearity | ± 1/2 LSB (±1 LSB at 13/14/25 bit)Kübler Group |
| Code | BinaryKübler Group |
| Max. Speed | 6000 min⁻¹ (3000 min⁻¹ continuous)Kübler Group |
| Starting Torque | < 0.01 NmKübler Group |
| Rotor Inertia | approx. 1.8 × 10⁻⁶ kg·m²Kübler Group |
| Shaft Load | Radial: 80 N; Axial: 40 NKübler Group |
| Weight | approx. 0.7 kgKübler Group |
| Supply Voltage | 10 ... 30 V DCKübler Group |
| Power Consumption | max. 0.29 AKübler Group |
| Recommended Fuse | T 0.315 AKübler Group |
| Interface | RS 485, Profibus-DP (Encoder Profile Class C2)Kübler Group |
| Baud Rate | max. 12 Mbit/sKübler Group |
| Addressing | Programmable via DIP switchesKübler Group |
| Protection | IP65 (housing)Kübler Group |
| Working Temp. | –20 °C ... +80 °CKübler Group |
| Operating Temp. | –20 °C ... +85 °CKübler Group |
| Shock Resistance | 2500 m/s², 6 ms (DIN-IEC 68-2-27)Kübler Group |
| Vibration Resistance | 100 m/s², 10 ... 2000 Hz (DIN-IEC 68-2-6)Kübler Group |
| EMC | EN 61000-6-1, -6-4, -6-3; EN 61000-4-8 (level 5)Kübler Group |
| Shaft Material | Stainless steelKübler Group |
| Installation Depth | 87.8 mmKübler Group |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
