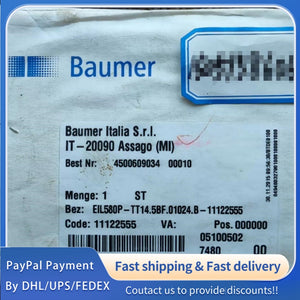

1 PCS new Baumer EIL580P-TT14.5BF.01024.B-11122555 encoder #LYQ007
Parameter
Value
Product Type
Incremental rotary encoder (OptoPulse)
Series
EIL580P
Order Code
EIL580P-TT14.5BF.01024.B-11122555
Shaft Type
Through hollow shaft
Shaft Diameter
14 mm (H7 tolerance)
Flange Size
Ø58 mm
Connection
Radial flange connector, M12 (8-pin)
Resolution
1024 pulses per revolution (programmable 1–65536 ppr)
Output Signal
TTL/RS422 (A+, B+, R+, A-, B-, R-)
Supply Voltage
4.75–30 VDC
Protection
IP65 (EN 60529)
Weight
Approx. 300 g
Certifications
UL 508, CSA 22.2
Parameter
Value
Supply Voltage
4.75–30 VDC
Reverse Polarity Protection
Yes
Short-Circuit Protection
Yes (TTL: max. 1 s per signal; HTL: yes)
No-Load Current Consumption
≤70 mA
Initialization Time
≤30 ms (after power-up)
Output Frequency
≤300 kHz (TTL)
Phase Shift
90° ±10°
Duty Cycle
45–55% (at 1024 ppr)
Reference Signal
Zero pulse (R), width 90° ±10°
Sensing Method
Optical
EMC Immunity
EN 61000-6-2
EMC Emission
EN 61000-6-3
