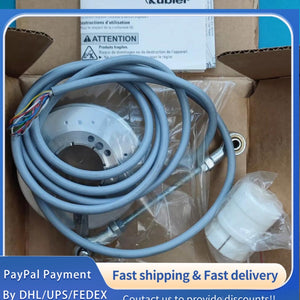

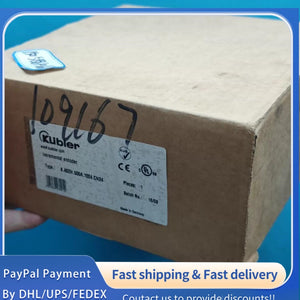

1 PCS new Kubler Encoder 8.A02H.500A.1024.CN24 #LYQ007
1 PCS new Kubler Encoder 8.A02H.500A.1024.CN24 #LYQ007
| Parameter | Value |
|---|---|
| Model | 8.A02H.500A.1024.CN24 |
| Type | Incremental, hollow shaft encoderKübler Group |
| Resolution | 1024 pulses per revolution (ppr) |
| Hollow Shaft | 30 mm (A code) |
| Flange | Ø 100 mm, with short spring device (5 code) |
| Output | Push‑pull (with inverted signal), 10–30 V DC (A code) |
| Connection | Radial cable (CN24) |
| Outer Dimension | Ø 100 mmKübler Group |
| Mounting Depth | 49 mm |
| Max. Rotational Speed | 6000 min⁻¹ (at ≤70°C); 3500 min⁻¹ (at 80°C) |
| Supply Voltage | 10–30 V DC |
| Current Consumption | Typ. 80 mA; Max. 150 mA (no load, with inverted signals) |
| Max. Pulse Frequency | 300 kHz |
| Signal Level | High: min. UB–3 V; Low: max. 0.5 V |
| Rise/Fall Time | ≤1 µs |
| Permissible Load/Channel | ±30 mA max. |
| Protection Class | IP65Kübler Group |
| Operating Temperature | –40 °C to +80 °CKübler Group |
| Shock Resistance | 2000 m/s², 6 ms (EN 60068‑2‑27) |
| Vibration Resistance | 100 m/s², 10–2000 Hz (EN 60068‑2‑6) |
| Starting Torque | <0.2 Nm (with sealing, at 20°C) |
| Weight | Approx. 800 gKübler Group |
| Shaft Material | Stainless steel, H7 tolerance |
| Certifications | CE, RoHS compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
