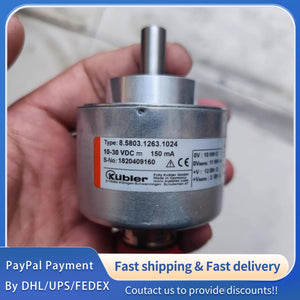

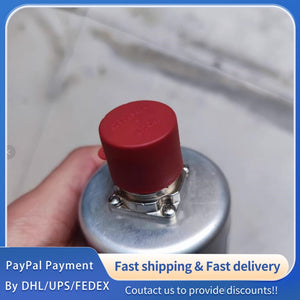

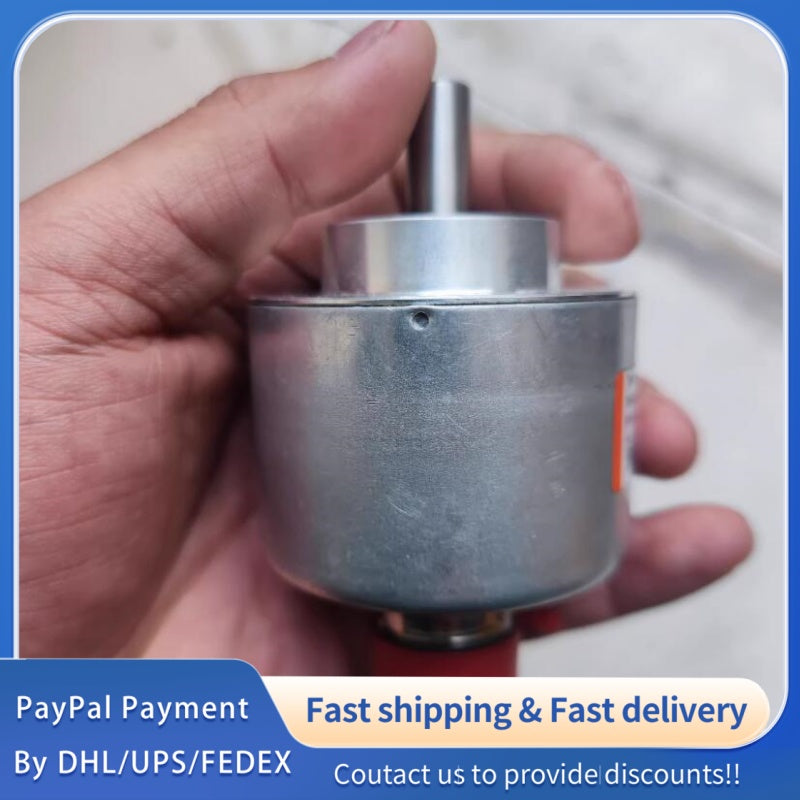

1 PCS USED Kübler 5.5803.1263.1024 Encoder #LYQ007
1 PCS USED Kübler 5.5803.1263.1024 Encoder #LYQ007
| Parameter Category | Parameter | Value |
|---|---|---|
| Basic Information | Product Series | sendix 5803 High Temperature Optical Incremental Encoder |
| Order Code | 5.5803.1263.1024 | |
| Resolution (PPR) | 1024 pulses per revolution | |
| Mechanical Specifications | Housing Diameter | Ø 58 mm (2.28 in) |
| Flange Type | Clamping Flange (ø 58 mm) | |
| Shaft Diameter | Ø 6 mm h7 (0.24 in) | |
| Max Speed | 12,000 min⁻¹ | |
| Starting Torque | < 0.01 Nm | |
| Weight | Approx. 0.4 kg (14.11 oz) | |
| Protection Class (Shaft) | IP65 (per EN 60529) | |
| Shock Resistance | 1000 m/s², 6 ms (EN 60068-2-27) | |
| Vibration Resistance | 100 m/s², 10–2000 Hz (EN 60068-2-6) | |
| Electrical Specifications | Supply Voltage | 10 ... 30 V DC |
| Output Interface | Push-Pull (with inverted signal) | |
| Current Consumption (Typ.) | 40 mA (with inverted signal) | |
| Current Consumption (Max.) | 100 mA (with inverted signal) | |
| Permissible Load per Channel | Max. ±30 mA | |
| Max Pulse Frequency | 300 kHz | |
| Signal Level (HIGH) | Min. +V – 2.5 V | |
| Signal Level (LOW) | Max. 2.0 V | |
| Rise/Fall Time (Max.) | 1 μs | |
| Environmental Specifications | Operating Temperature | -20 °C ... +110 °C (-4 °F ... +230 °F) |
| Certifications | UL (E224618), CE, RoHS |
