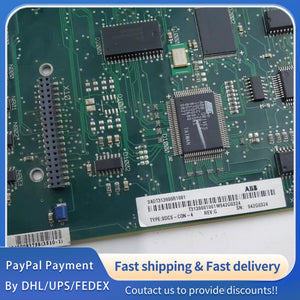

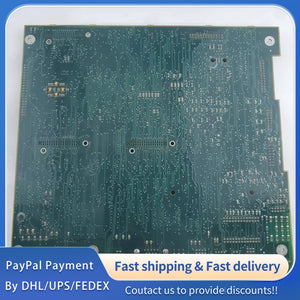

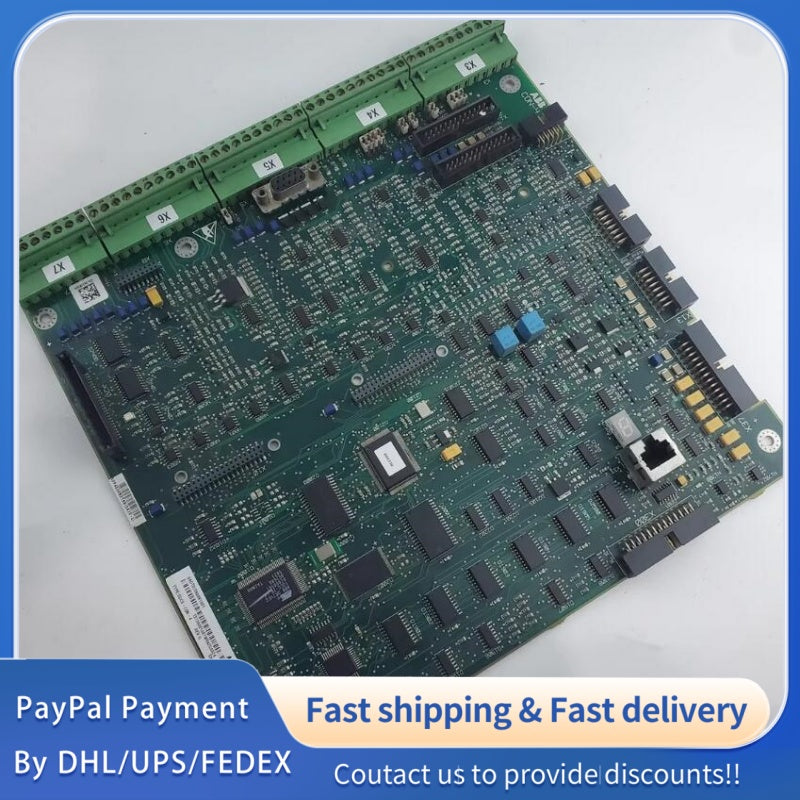

1PCS used ABB DCS800 Control Board SDCS‑CON‑4 (3ADT313900R1501) #LYQ007
1PCS used ABB DCS800 Control Board SDCS‑CON‑4 (3ADT313900R1501) #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | SDCS‑CON‑4, 3ADT313900R1501 |
| Product Type | Control Board for DCS800 DC Drives |
| Supply Voltage | 24 VDC |
| Power Consumption | 10 W |
| Processor | ARM9 |
| Memory | 128 MB SDRAM; FlashPROM for firmware & parameters |
| Operating Temperature | -20 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Humidity | 5% – 95% RH, non‑condensing |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 115 × 65 × 23 mm |
| Weight | 0.24 kg |
| Communication Interfaces | RS‑232, RS‑485 |
| Supported Protocols | MB300, MB300E |
| Submodule Slots | 4 |
| Backplane Connector | 1 |
| Analog Inputs | 4 channels, -10 V … +10 V / -20 mA … +20 mA |
| Analog Outputs | 4 channels |
| Digital Inputs | 8 channels |
| Digital Outputs | 8 channels |
| Encoder Interface | Differential / single‑ended, 5 V / 24 V supply |
| Watchdog Function | Internal, resets firing & outputs on trip |
| Mounting | DIN rail / module mounting |
| Country of Origin | Switzerland |
