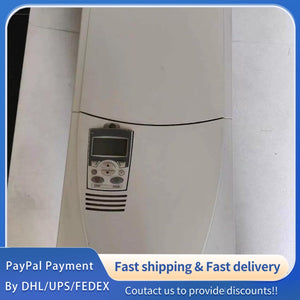

1 PCS USED ABB DCS800‑S02‑0680‑04 DC Drive #LYQ007
Parameter
Specification
Product Model
DCS800‑S02‑0680‑04
Product Series
DCS800 DC Drive (4‑Quadrant, Regenerative)
Bridge Configuration
4‑Quadrant (4‑Q), anti‑parallel bridge
Rated Armature Current
680 A DC (IP00)
Supply Voltage Class
04 = 230…400 V AC, 3‑phase
Unit Size
D4
Protection Class
IP00 (module, for cabinet mounting)
Field Exciter
Onboard field exciter included
Parameter
Specification
Nominal AC Input Voltage
3‑phase 230–400 V AC ±10%
Input Frequency
50/60 Hz ±2% (static), ±5 Hz (dynamic)
Rated DC Output Voltage
Up to 540 V DC (at 400 V AC input)
Max. Output Current
680 A DC (continuous, 4‑Q)
AC Input Current (Typical)
~558 A AC (0.82 × DC rated)
Onboard Field Current
25 A DC max.
Control Supply Voltage
115/230 V AC, 1‑phase
Power Losses (Typical)
~2.14 kW
Cooling Air Volume
950 m³/h
Fan Voltage
230 V AC, 1‑phase
