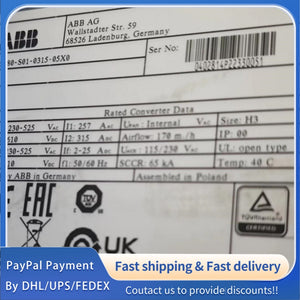

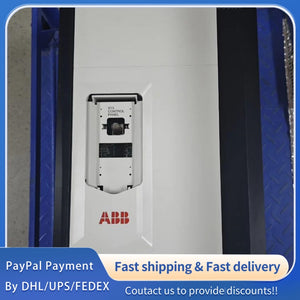

1 PCS used ABB DC Drive DCS880-S01-0315-05X0 #LYQ007
1 PCS used ABB DC Drive DCS880-S01-0315-05X0 #LYQ007
1 PCS used ABB DC Drive DCS880-S01-0315-05X0 #LYQ007
Product Overview: ABB DC Drive Model DCS880-S01-0315-05X0 is a high-performance industrial DC speed control device independently developed and manufactured by ABB Group, Switzerland. As a core component of DC motor control systems, it integrates advanced speed regulation technology, precise current control, comprehensive protection functions and multi-protocol communication capabilities. The product strictly complies with ABB global quality management standards, undergoes strict factory precision calibration, full-process aging testing and quality inspection, ensuring 100% brand-new original quality without any manual modification or secondary processing. It fully conforms to international industrial control standards (IEC 61131-3, IEC 61000 series) and relevant international certifications (CE, UL, ISO 9001, RoHS), featuring high speed regulation precision, fast dynamic response, strong anti-interference ability and long-term stable operation. It is perfectly compatible with ABB DC motors, AC800M/AC500 series PLCs and other ABB industrial control equipment, widely used in metallurgy, mining, power generation, petroleum, chemical industry, machinery manufacturing, lifting transportation and other industrial fields that require high-precision DC motor speed control, providing reliable speed regulation and control support for the safe, stable and efficient operation of industrial production lines.
|
Parameter
|
Specification (DCS880-S01-0315-05X0)
|
Unit
|
ABB Factory Notes (Original Description)
|
|---|---|---|---|
|
Brand & Origin
|
ABB Group, Switzerland, Original Factory, Brand New Genuine Product
|
-
|
100% brand-new original product manufactured by ABB official factory, in line with ABB global quality management system standards, ensuring consistent performance and reliability.
|
|
Product Model & Part No.
|
Model: DCS880-S01-0315-05X0; Standard Part No.: DCS880S01031505X0
|
-
|
Original factory model and part number, unchanged; dedicated for ABB DC speed control systems, standardized design for easy installation and replacement.
|
|
Product Type
|
Industrial Grade DC Drive, ABB DCS880 Series, Single-quadrant Operation, Core Speed Control Device
|
-
|
Integrates speed regulation, current control, fault diagnosis and communication functions, serving as the core of DC motor control systems.
|
|
Input Voltage
|
3-phase AC 380-500V ±10%; Frequency: 50/60Hz ±5%
|
V AC, Hz
|
Stable input voltage design, strong anti-fluctuation ability, adapting to harsh industrial on-site power supply environment, suffix "05X0" indicates 380-500V voltage grade.
|
|
Rated Output Current
|
315A (Rated); Maximum Output Current: 472.5A (150% overload, 60s)
|
A
|
High current output capacity, supporting short-term overload operation, meeting the requirements of high-power DC motor speed control scenarios, model "0315" indicates 315A rated output current.
|
|
Rated Output Voltage
|
400V DC (Maximum); Adjustable Output Voltage: 0-400V DC
|
V DC
|
Stepless adjustable output voltage, matching the rated voltage of DC motors, ensuring precise speed regulation and stable motor operation.
|
|
Speed Regulation Precision
|
±0.01% (With speed feedback); ±0.1% (Without speed feedback)
|
-
|
High speed regulation precision, supporting both open-loop and closed-loop control, adapting to different precision requirements of industrial speed control scenarios.
|
|
Speed Regulation Range
|
1:1000 (Closed-loop control); 1:100 (Open-loop control)
|
-
|
Wide speed regulation range, supporting stepless speed change from low speed to high speed, meeting the diverse speed requirements of industrial production.
|
|
Dynamic Response Time
|
≤10ms (Current loop); ≤50ms (Speed loop)
|
ms
|
Ultra-fast dynamic response, quickly adapting to load changes and speed command adjustments, ensuring stable operation of the motor under variable working conditions.
|
|
Control Mode
|
Speed Control, Torque Control, Current Control; Switchable between Open-loop and Closed-loop
|
-
|
Multi-control mode design, flexible switching according to actual application scenarios, meeting the control requirements of different industrial equipment.
|
|
Input/Output Interface
|
Digital Input: 8 Channels; Digital Output: 6 Channels (Relay); Analog Input: 4 Channels (4-20mA/0-10V); Analog Output: 2 Channels
|
Channels
|
Multi-channel interface design, supporting various signal types, facilitating connection with sensors, actuators, PLCs and other equipment.
|
|
Communication Interface
|
RS-485, Ethernet (RJ45), Profibus-DP, Modbus RTU/TCP, ABB Industrial Ethernet
|
-
|
Multi-protocol communication design, facilitating remote monitoring, parameter setting and system integration with ABB control systems.
|
|
Operating Temperature Range
|
0 ~ 45 °C (Operating); -25 ~ 70 °C (Storage); No Frost Damage
|
°C
|
Built-in efficient heat dissipation structure, high and low temperature resistance, adapting to various harsh industrial temperature environments.
|
|
Relative Humidity
|
5 ~ 95% (Non-condensing), No Dew Formation, Anti-moisture Design
|
%
|
Internal components adopt anti-moisture and anti-corrosion coating, effectively preventing moisture damage and extending service life.
|
|
Anti-interference Performance
|
Meets IEC 61000-4 Standard, Anti-EMI, Anti-RFI, Anti-surge, Anti-static (±6kV)
|
-
|
Excellent anti-interference ability, ensuring stable signal transmission and operation in complex industrial electromagnetic environments.
|
|
Physical Dimensions (W×H×D)
|
500 × 700 × 250 (±2) mm (Without Installation Bracket)
|
mm
|
Reasonable structural design, adapting to standard industrial equipment cabinets, easy to install and disassemble on site.
|
|
Weight
|
Approx. 35 ~ 40 kg (Net Weight, Without Packaging)
|
kg
|
Heavy-duty design, high structural strength, suitable for long-term industrial operation, ensuring stable performance under high load.
|
|
Protection Functions
|
Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Motor Stall, Ground Fault, Anti-static Protection
|
-
|
Comprehensive protection design, quick response to abnormalities, protecting the DC drive, DC motor and connected control equipment from damage.
|
|
Certifications & Compliance
|
ISO 9001, CE, UL, IEC 61131-3, IEC 61000-4, RoHS, FCC
|
-
|
Complies with international quality, safety and environmental protection standards, applicable to global industrial projects.
|
|
Warranty Period
|
1 Year (Original ABB Factory Warranty, Covering Manufacturing Defects)
|
Year
|
Professional after-sales support provided by ABB, ensuring timely maintenance and problem solving for industrial applications.
|
|
Compatibility
|
ABB DC Motors, ABB AC800M/AC500 Series PLCs, ABB HMI, ABB Industrial Control Systems
|
-
|
Plug-and-play, no need to modify parameters, perfectly matching ABB industrial control system, easy to debug and put into use.
|
|
Service Life
|
≥80,000 Hours (Average Operating Time, Under Rated Working Conditions)
|
Hours
|
High-quality components and strict manufacturing process, ensuring long-term stable operation and reducing maintenance costs for industrial users.
|
