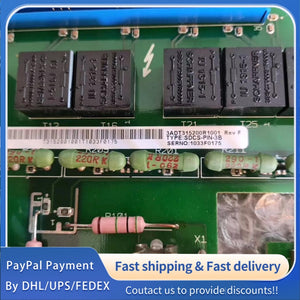

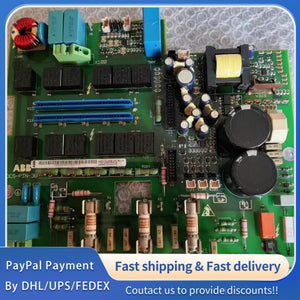

1 PCS used ABB DCS400 Power Interface Board SDCS‑PIN‑3B 3ADT315200R1001 #LYQ007
1 PCS used ABB DCS400 Power Interface Board SDCS‑PIN‑3B 3ADT315200R1001 #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | SDCS‑PIN‑3B (3ADT315200R1001) |
| Product Type | Power Interface Board |
| Application | DCS400 DC Drive System |
| Input Voltage | 230–525 V AC (3‑phase) |
| Input Current | 16 A (max) |
| Outputs | Multiple regulated low‑voltage outputs for control circuits, ASICs, DSPs, FPGAs, and logic |
| 24 V DC Output | +24 V DC, max 150 mA (for fieldbus adapter) |
| Control Functions | Armature bridge control, high‑ohm voltage measurement, current transformer interface, on‑board excitation control and current measurement |
| Operating Temperature | −20 °C to +55 °C |
| Storage Temperature | −20 °C to +70 °C |
| Dimensions (W×H×D) | Approx. 127 × 102 × 38 mm |
| Weight | Approx. 0.5 kg |
| Protection | IP20 (front panel) |
| Certifications | CE, UL, IEC |
| Country of Origin | Sweden / Germany |
| Mounting | Slot‑in on DCS400 RMIO board |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
