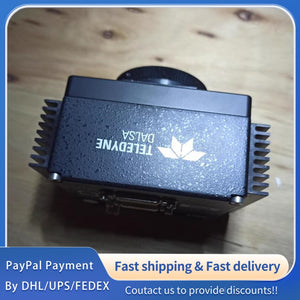

1 PCS used Teledyne DALSA PC-30-04K80-01-R 4K Color Line Scan Camera #LYQ007
1 PCS used Teledyne DALSA PC-30-04K80-01-R 4K Color Line Scan Camera #LYQ007
| Parameter | Value |
|---|---|
| Model | PC-30-04K80-01-R |
| Camera Type | Line Scan, Color (Trilinear RGB) |
| Sensor | DALSA Proprietary Trilinear CCD |
| Resolution | 4096 pixels/line (3 color lines: R, G, B) |
| Pixel Size | 10 µm × 10 µm |
| Sensing Area | 41.0 mm × 0.01 mm (W × H) |
| Fill Factor | 100% |
| Spectral Response | 400 nm – 1000 nm |
| Max Line Rate | 17.6 kHz |
| Pixel Clock | 80 MHz (3 taps) |
| Data Throughput | Up to 80 MPixels/sec (RGB) |
| A/D Resolution | 8-bit or 12-bit |
| Dynamic Range | > 50 dB |
| Gain Range | –10 dB to +10 dB (per color) |
| Sensitivity | R: 240, G: 400, B: 200 DN/(nJ/cm²) @ 0 dB, 12-bit, FFC off |
| Signal-to-Noise Ratio | 47.6 dB (@ 0 dB gain) |
| Interface | Camera Link (Base / Medium) |

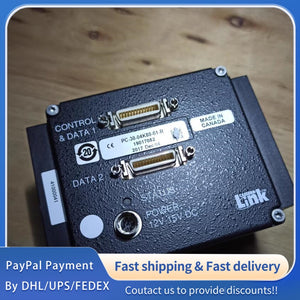

| Connectors | Data: MDR-26; Power: Hirose HR10-6P |
| Power Supply | +12 V DC to +15 V DC |
| Power Consumption | 12 W |

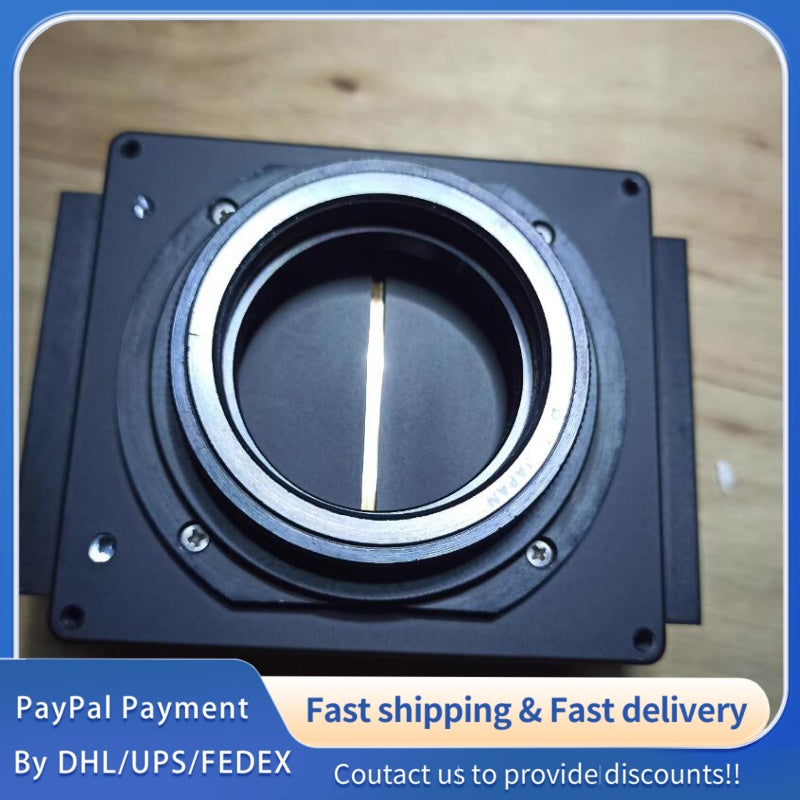

| Lens Mount | F-mount, M42×1, M72×0.75 (adapter) |
| Dimensions (W×H×L) | 76 mm × 105 mm × 54.4 mm |
| Weight | < 450 g |
| Operating Temp | 0 °C to 50 °C |
| Regulatory | CE, RoHS |
| Features | Flat Field Correction, White Balance, Programmable Gain/Offset, Adjustable Integration Time, Test Pattern, Diagnostics |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
