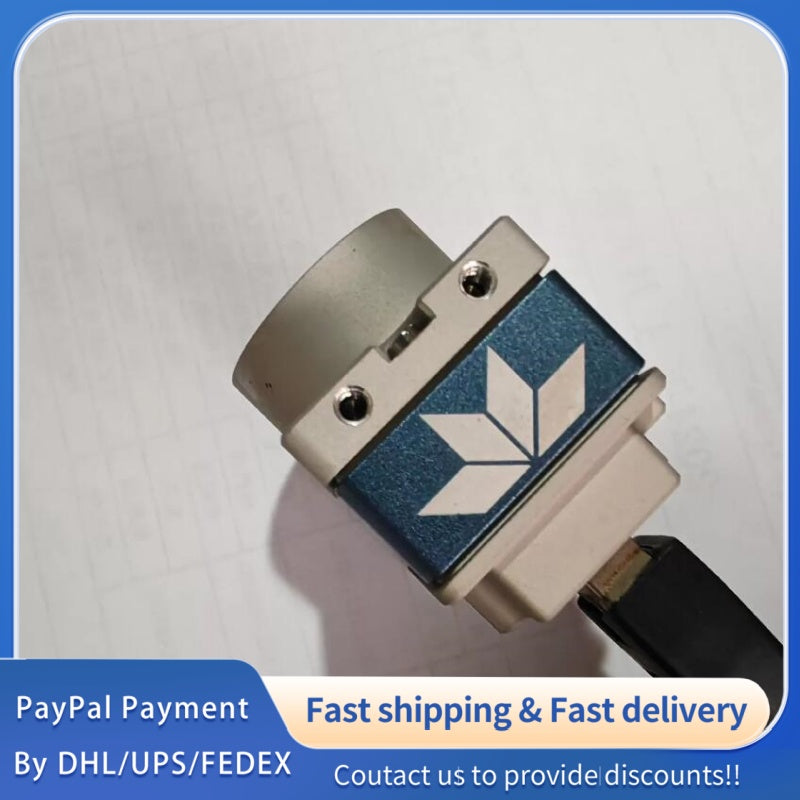

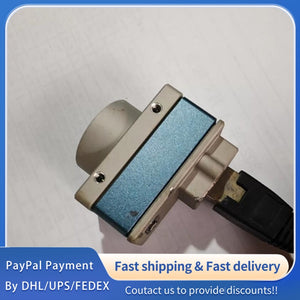

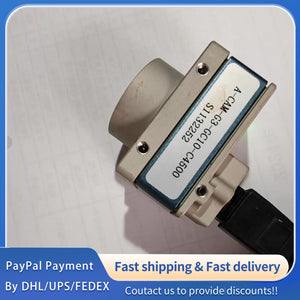

1 PCS used Teledyne DALSA G3-GC10-C4060 8.9 MP Color Area Scan Camera #LYQ007
1 PCS used Teledyne DALSA G3-GC10-C4060 8.9 MP Color Area Scan Camera #LYQ007
| Parameter Category | Parameter Name | English Specification |
|---|---|---|
| Model Identification | Full Model Number | G3-GC10-C4060 |
| Product Series | Genie Nano 1GigE | |
| Type | Color Area Scan Industrial Camera | |
| Imaging Sensor | Sensor Type | Progressive Scan CMOS, Global Shutter |
| Resolution (Active Pixels) | 4112 × 2176 | |
| Total Pixels | ~8.9 MP | |
| Pixel Size | 3.45 μm | |
| Color Filter | Bayer Color Filter | |
| Bit Depth | 8 bit | |
| Frame Rate | Standard Frame Rate | 13.4 fps |
| TurboDrive Frame Rate | 28 fps | |
| Burst/Internal Frame Rate | 30 fps | |
| Interface | Communication Interface | GigE Vision v2.0 (1 Gbps) |
| Physical Connector | RJ45 with Screw Locks | |
| Synchronization | Software Trigger, Free-Run, Hardware Trigger (GPIO), PTP (IEEE 1588) | |
| Lens Mount | Supported Mounts | C-Mount, CS-Mount |
| Power | Power Supply | PoE (IEEE 802.3af) or 10–36 VDC (±10%) |
| Typical Power Consumption | 3.8 W – 4.9 W | |
| General Purpose I/O | Digital Inputs | 2 channels |
| Digital Outputs | 3 channels | |
| GPIO Connector | 10-pin Samtec | |
| Environmental | Operating Temperature | -20 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C | |
| Compliance | CE, FCC, RoHS | |
| Mechanical | Dimensions (W×H×L) | 38.9 mm × 29 mm × 44 mm (including C-Mount) |
| Weight | 46 g | |
| Software & Warranty | Recommended SDK | Sapera LT 8.00 or later |
| Warranty | 3 Years |
