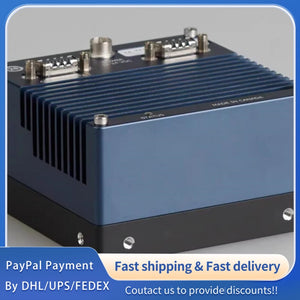

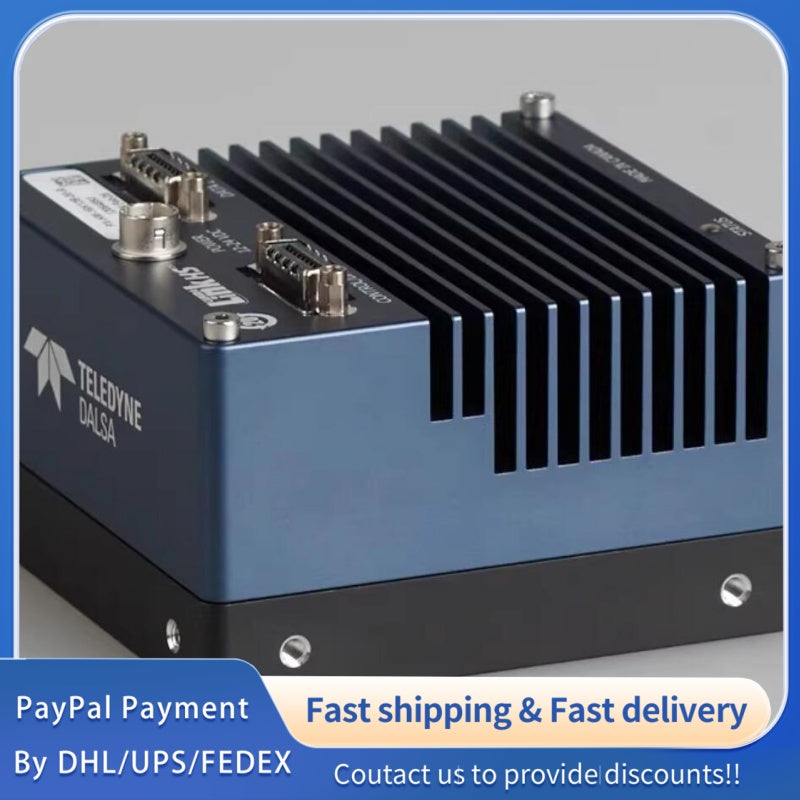

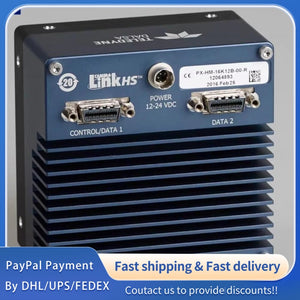

1 PCS used Teledyne DALSA PX-HM-16K12B-00-R Monochrome 16K TDI Line Scan Camera #LYQ007
1 PCS used Teledyne DALSA PX-HM-16K12B-00-R Monochrome 16K TDI Line Scan Camera #LYQ007
| Parameter | Specification |
|---|---|
| Model | PX-HM-16K12B-00-R |
| Camera Type | TDI Line Scan Camera |
| Sensor Technology | Multi-line CMOS TDI |
| Resolution | 16,352 (Active) × 12 Pixels |
| Pixel Size | 5.0 μm × 5.0 μm |
| Max Line Rate | 125 kHz (Single Cable) |
| Row Configurations | 4, 8, or 12 Rows (Selectable) |
| Data Format | 8-bit or 12-bit (Selectable) |
| Output Interface | Camera Link HS (1 or 2 Cables) |
| Lens Mount | M90 × 1 mm |
| Responsivity | 2200 DN/(nJ/cm²) @ 12-bit, 1× Gain |
| Responsivity Range | 23× (Min to Max) |
| Noise Equivalent Exposure (NEE) | 5 pJ/cm² @ 620 nm |
| Nominal Gain Range | Up to 7.5× |
| Antiblooming | > 100× |
| Spectral Response | Visible (400–700 nm) |
| Dimensions | 97 (W) × 97 (H) × 61 (D) mm |
| Weight | 685 g |
| Operating Temperature | 0 °C to 60 °C (Front Plate) |
| Power Supply | Hirose 6-pin, +12 V to +24 V DC |
| Power Dissipation | 23 W (Typical) |
| Regulatory Compliance | CE, RoHS |
| Revision | 03-070-20073-02 (August 25, 2015) |
