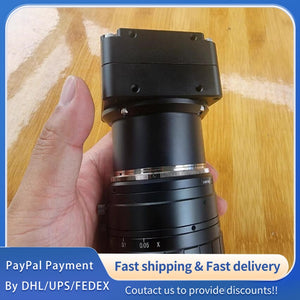

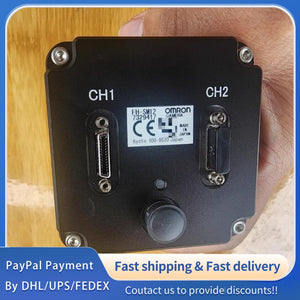

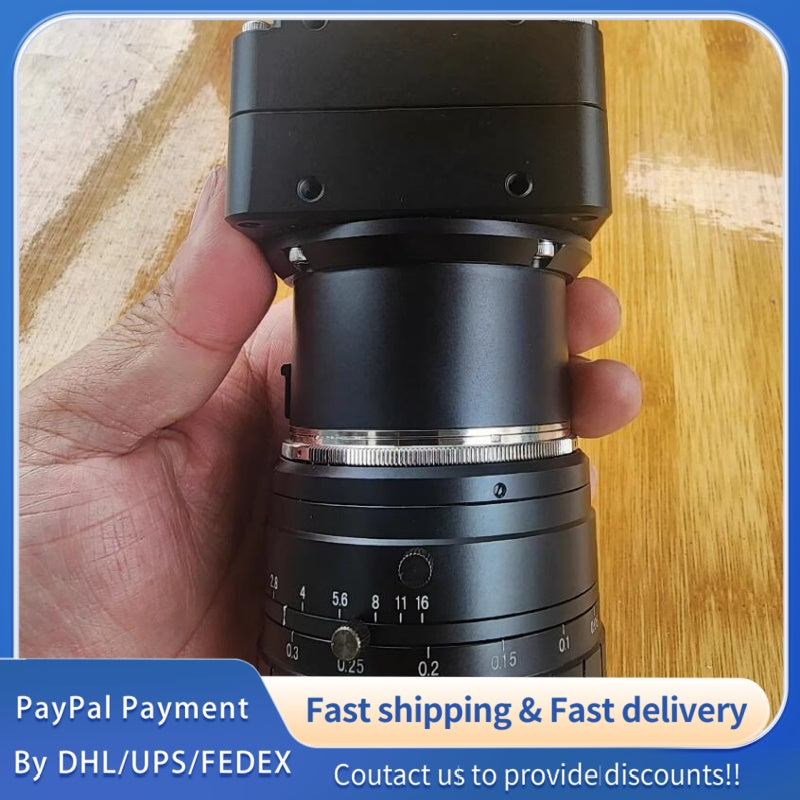

1 PCS used OMRON FH-SM12 12MP Industrial Camera #LYQ007
1 PCS used OMRON FH-SM12 12MP Industrial Camera #LYQ007
| Parameter | Value |
|---|---|
| Model | FH-SM12 |
| Image Sensor | Monochrome CMOS (Equivalent to 1.76-inch) |
| Effective Pixels | 4084 (H) × 3072 (V) |
| Image Area | 22.5 mm × 16.9 mm (Diagonal 28.14 mm) |
| Pixel Size | 5.5 μm × 5.5 μm |
| Scanning Method | Progressive |
| Frame Rate | High Speed Mode: 38.9 fps (2CH), 19.5 fps (1CH)
|
| Synchronization | Internal |
| Video Output | Digital 8-bit |
| Gain | 1 to 5 times |
| Shutter Speed | 60 μs to 100,000 μs |
| Partial Scanning | 4 lines to 3072 lines (4-line units) |
| Lens Mount | M42 mount (Recommended: 3Z4S-LE VS-L□□□□/M42-10)
|
| Power Consumption | Max. 6.2 W (13 VDC) |
| Vibration Resistance | 10–150 Hz, 0.35 mm half-amplitude, 50 m/s² max acceleration
|
| Shock Resistance | 150 m/s², 3 times each in 6 directions |
| Operating Temp | 0°C to +40°C (no icing/condensation) |
| Storage Temp | -25°C to +65°C (no icing/condensation) |
| Humidity | 35% to 85% RH (no condensation) |
| Protection | IP40 (IEC 60529) |
| Weight | Approx. 320 g |
| Material | Case: Aluminum |
| Cable Length | High Speed: Max 5 m
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
