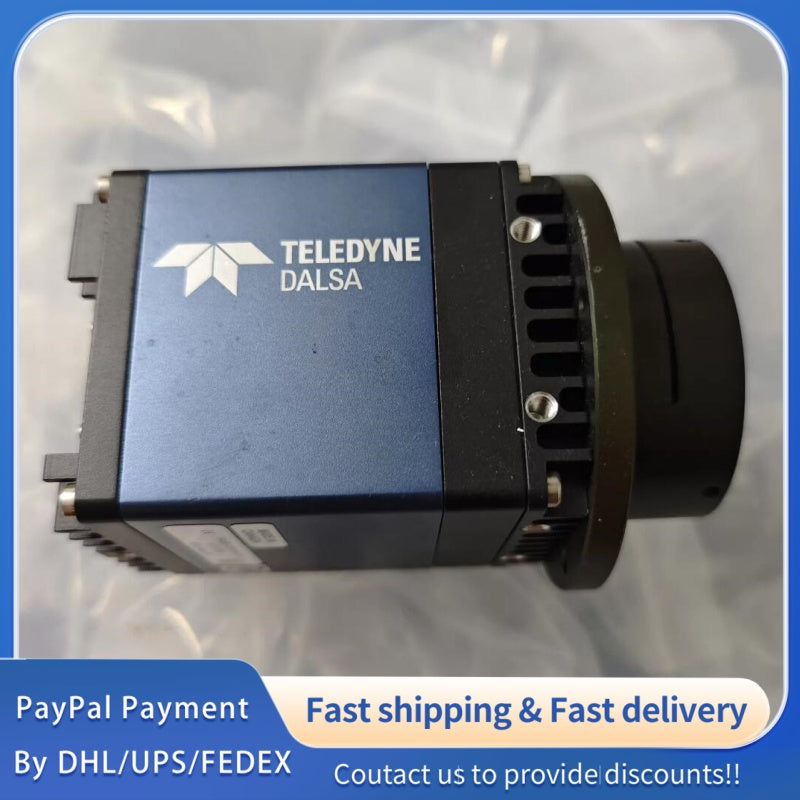

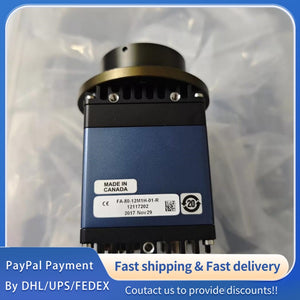

1 PCS USED Teledyne DALSA FA-80-12M1H-01-R Industrial Camera #LYQ007
1 PCS USED Teledyne DALSA FA-80-12M1H-01-R Industrial Camera #LYQ007
| Parameter Category | Parameter Name | Factory Specification |
|---|---|---|
| Basic Identification | Part Number | FA-80-12M1H-01-R (Monochrome, Falcon2 12M) |
| Basic Identification | Camera Type | Area Scan Industrial CMOS Camera, Global Shutter |
| Basic Identification | Brand | Teledyne DALSA |
| Basic Identification | Key Compliance | GenICam, Full Camera Link, CE, RoHS |
| Sensor Core | Resolution | 4096 (H) × 3072 (V) (12 Megapixels) |
| Sensor Core | Pixel Size | 6.0 μm × 6.0 μm |
| Sensor Core | Shutter Type | Global Shutter (No Smear) |
| Sensor Core | Color/Mono | Monochrome (FA-80 = Mono; FA-81 = Color) |
| Performance | Max Frame Rate (8-bit) | 58 fps (Full Resolution, 4:3 Aspect Ratio) |
| Performance | Pixel Rate | 8 × 76 MHz (8-tap) / 10 × 76 MHz (10-tap) |
| Performance | Output Bit Depth | 8-bit / 10-bit (Selectable) |
| Performance | Exposure Time | Programmable (User-Adjustable Integration Time) |
| Performance | Dynamic Range | Enhanced (Low Dark Noise, Improved FPN/PRNU) |
| Data Interface | Interface Type | 2 × Full Camera Link (SDR26 Connectors) |
| Data Interface | Tap Configuration | 8 Taps (8-bit) / 10 Taps (10-bit) |
| Power | Operating Voltage | 12 V DC to 24 V DC |
| Power | Power Dissipation | ≤ 10 W (Typical) |
| Power | Power Connector | Hirose 12-Pin Circular |
| Mechanical | Lens Mount | M42 × 1 Thread |
| Mechanical | Dimensions (H×W×D) | 60 mm × 60 mm × 80.5 mm |
| Mechanical | Weight | < 300 g (Net) |
| Environmental | Operating Temperature | 0 °C to 50 °C (Front Plate) |
| Environmental | Storage Temperature | -20 °C to 60 °C (Typical, Factory Spec) |
| Environmental | Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Environmental | Shock Resistance | 50 g (11 ms, Half-Sine) |
| Environmental | Vibration Resistance | 5 g (10 Hz to 2 kHz) |
| Functional | On-Board Correction | FPN, PRNU, Flat Field (Internal Calibration) |
| Functional | ROI/Windowing | Supported (Higher Frame Rates with Reduced ROI) |
| Functional | Test Patterns | Built-In (Diagnostics) |
| Applications | Target Use Cases | Semiconductor Inspection, AOI, 3D Profiling, Solar Panel Inspection |
