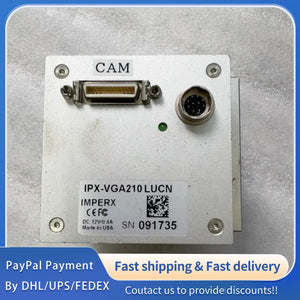

1 PCS USED IMPERX IPX-vga210 lucn Industrial Camera #LYQ007
1 PCS USED IMPERX IPX-vga210 lucn Industrial Camera #LYQ007
1 PCS USED IMPERX IPX-vga210 lucn Industrial Camera #LYQ007
Original Factory Precision Parameters (Model: IMPERX IPX-vga210 lucn Industrial Camera)
|
Parameter Category
|
Parameter Name
|
Original Factory Precision Specification
|
|
Basic Information
|
Product Model
|
IPX-vga210 lucn; IMPERX Genuine Original Industrial Camera, 100% unused and unrefurbished genuine parts, consistent with IMPERX's official model coding standards. It is a standard-resolution CMOS industrial camera, designed for dedicated matching with mainstream industrial vision systems, image acquisition cards and machine vision software (Halcon, VisionPro), with fixed configuration and excellent compatibility, focusing on stable imaging, practical performance and strong environmental adaptability.
|
|
Manufacturer Standard
|
Manufactured by IMPERX (Genuine Original Factory); Compliant with ISO 9001 Quality Certification, CE, RoHS, FCC Industrial Standards; Conforms to IMPERX Internal Technical Standard and Industrial Camera Manufacturing Norms, meeting the precision calibration requirements of international industrial imaging product standards, ensuring high consistency and reliability of each parameter.
|
|
|
Product Series
|
IMPERX IPX Series Industrial Cameras; CMOS Sensor Category; Adopts industrial-grade high-stability CMOS image sensor and reliable data transmission technology, designed for real-time image capture in general industrial machine vision, routine measurement and ordinary detection scenarios, compatible with mainstream machine vision software and industrial control systems for integrated imaging and analysis.
|
|
|
Core Imaging & Precision Parameters
|
Image Sensor
|
Industrial-Grade CMOS Sensor; Resolution: 640 × 480 Pixels (VGA Standard); Sensor Size: 1/3 Inch; Pixel Size: 5.6 μm × 5.6 μm; Progressive Scan Mode; High-stability sensor, ensuring clear imaging in conventional light environments, with good dynamic range and color reproduction, suitable for general precision inspection and measurement scenarios.
|
|
Resolution
|
Standard Resolution: 640 × 480 Pixels (VGA); Support custom resolution adjustment within the range of 128 × 96 to maximum resolution, step size 1 × 1; Ensure stable image capture matching different application scenarios and measurement requirements, with no distortion in imaging edge.
|
|
|
Frame Rate
|
Maximum Frame Rate: 30 fps (Full Resolution, 8-bit); 25 fps (Full Resolution, 10-bit); Support frame rate adjustment in 0.1-30 fps range, stepless adjustment; Ensure real-time image acquisition and transmission, meeting the requirements of general dynamic inspection and real-time monitoring scenarios.
|
|
|
Pixel Depth
|
8-bit/10-bit per pixel, switchable; Support grayscale and color image acquisition (Color Space: RGB, YUV422); 10-bit pixel depth ensures sufficient image details and good dynamic range, effectively distinguishing basic differences in image gray levels and color shades, suitable for general precision inspection and color detection scenarios.
|
|
|
Signal-to-Noise Ratio (SNR)
|
≥58 dB; High signal-to-noise ratio, equipped with built-in basic noise reduction algorithm, effectively reducing image noise interference, ensuring clear and stable image quality, avoiding false detection and misjudgment caused by noise in general precision inspection scenarios.
|
|
|
Exposure Control
|
Electronic Rolling Shutter; Exposure Time Range: 10 μs ~ 5 s, adjustable in 0.1 μs steps; Support automatic exposure (AE), manual exposure, trigger-controlled exposure modes; Adapt to different light intensity environments and moving speeds of measured objects, ensuring clear image acquisition without overexposure or underexposure.
|
|
|
Gain Adjustment
|
0-24 dB, adjustable in 0.1 dB steps; Support automatic gain (AGC) and manual gain adjustment; Effectively enhance image brightness in low-light environments without obvious noise amplification, improving the adaptability of the product to conventional complex light conditions.
|
|
|
Lens Interface
|
C-Mount; Compatible with mainstream industrial lenses (fixed focal length, zoom lenses); Support lens iris adjustment and focus control, ensuring precise matching with different lenses to achieve stable imaging effects.
|
|
|
Interface & Transmission Parameters
|
Data Interface
|
USB 2.0 (High Speed); Maximum Data Transmission Rate: 480 Mbps; Plug-and-play, easy to install and expand, ensuring stable and fast data transmission, suitable for short-distance connection scenarios in general industrial environments.
|
|
Trigger Interface
|
Digital Input/Output (I/O): 1 Input (Trigger), 1 Output (Status); Support External Trigger, Software Trigger, Continuous Acquisition Modes; Trigger Delay: 0 ~ 500 ms, adjustable in 0.1 ms steps; Ensure precise synchronization between image acquisition and industrial production line operations.
|
|
|
Power Interface
|
DC 12V Power Supply; Power Consumption: ≤6W (Typical); Stable power supply design, convenient for different installation scenarios, ensuring stable power supply and avoiding shutdown due to power failure.
|
|
|
Software Interface
|
Compatible with USB Vision Compatible Software, IMPERX SDK, Halcon, VisionPro, LabVIEW; Support C/C++, C#, Python Programming Languages, providing basic API interfaces, facilitating secondary development and system integration, matching various industrial control software and machine vision systems.
|
|
|
Structural & Installation Parameters
|
Structure Material
|
High-quality Aluminum Alloy Housing; Corrosion-resistant, anti-oxidation, strong electromagnetic interference (EMI) resistance, dustproof (IP65 Protection Level); Good structural rigidity and stability, adapting to long-term use in conventional industrial environments.
|
|
Dimensions
|
60 mm × 60 mm × 45 mm (Length × Width × Height); Compact structure, small size, saving installation space, compatible with standard industrial camera mounting brackets, facilitating system integration and layout in narrow spaces.
|
|
|
Compatibility
|
100% compatible with Windows 10/11 (32-bit/64-bit), Linux Operating Systems; Compatible with mainstream industrial image acquisition cards supporting USB Vision standard, compatible with most industrial lenses and machine vision software, strong versatility.
|
|
|
Installation Method
|
Standard Industrial Camera Mounting (M3 Thread Holes); Compatible with standard industrial camera brackets, easy to install, disassemble and adjust; Equipped with anti-loose screws, ensuring firm connection without loose contact during operation, adapting to general industrial vibration environments.
|
|
|
Environmental & Durability Parameters
|
Operating Environment
|
Operating Temperature: -10℃ ~ +55℃ (Ambient Temperature); Storage Temperature: -30℃ ~ +75℃; Operating Humidity: 20% ~ 90% RH (Non-Condensing); Storage Humidity: 5% ~ 95% RH (Non-Condensing); Adaptable to conventional industrial environmental temperature and humidity ranges, ensuring stable operation in general conditions.
|
|
Vibration Resistance
|
5 g (10 Hz ~ 500 Hz); Good vibration resistance, able to maintain stable image acquisition and data transmission under general industrial site vibration environment, avoiding signal interruption and data loss caused by vibration.
|
|
|
Shock Resistance
|
30 g (11 ms); Reliable shock resistance, able to resist occasional impact during transportation, installation and use, avoiding structural damage and parameter deviation, ensuring the service life of the product.
|
|
|
Service Life
|
≥50,000 Hours (Continuous Operation); Low failure rate, the industrial-grade aluminum alloy housing and high-quality components ensure long-term stable operation, adapting to long-time work requirements of general industrial production lines and continuous monitoring systems.
|
|
|
Additional Performance Parameters
|
Image Processing Functions
|
Built-in basic image enhancement, noise reduction, gamma correction functions; Support automatic white balance, black level correction; Ensure clear and stable images, reducing the pressure of subsequent software processing, improving system work efficiency.
|
|
Application Scenarios
|
Widely used in general industrial machine vision inspection, electronic component routine measurement, industrial production line monitoring, low-precision part surface detection, ordinary manufacturing quality control, intelligent sorting and other conventional imaging scenarios; Suitable for systems that require standard-resolution, stable image acquisition and reliable operation in general industrial environments.
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
