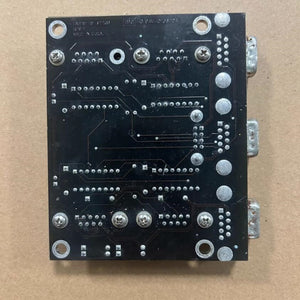

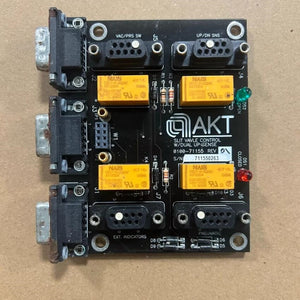

1 PCS used AMAT 0100-71155 PCB Board#LYQ007
1 PCS used AMAT 0100-71155 PCB Board#LYQ007
| Parameter | Value |
|---|---|
| Part Number | 0100-71155 |
| Manufacturer | Applied Materials (AMAT) |
| Board Type | Printed Circuit Board (PCB) / Control Board |
| Board Material | High-TG FR-4 (Glass Epoxy) |
| Layers | Multi-layer (Typically 4–8 layers) |
| Board Thickness | 1.6 mm ± 0.15 mm |
| Copper Weight (Outer/Inner) | 1 oz (35 μm) / 0.5 oz (18 μm) |
| Surface Finish | ENIG (Electroless Nickel Immersion Gold): Ni 3–5 μm, Au 0.05–0.1 μm |
| Minimum Line Width / Spacing | 0.1 mm / 0.1 mm (3 mil / 3 mil) |
| Input Voltage | 24 VDC (Typical) |
| Power Consumption | Max. 8.5 W |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Communication Interface | RS-485 |
| I/O Configuration | Mixed Digital / Analog |
| Isolation | Optocoupler Isolation & EMI Shielding |
| Protection | Over-voltage, Over-temperature |
| Dimensions (L×W×H) | 147 mm × 51.5 mm × 114 mm |
| Weight | 0.6 kg |
| Compliance | Industrial Safety Standards, Semiconductor Equipment Specifications |
| Application | Used in AMAT Semiconductor Manufacturing Equipment |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
