Parameter    Details

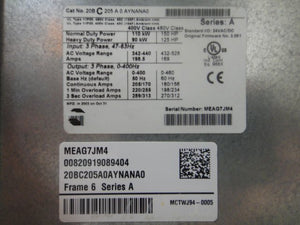

Product Model    20BC205A0AYNANA0 (Allen‑Bradley PowerFlex 700 AC Drive)
Input Voltage    3‑phase, 400V AC, 50/60Hz (±10% tolerance)
Output Current    205A (Normal Duty, ND); 164A (Heavy Duty, HD, 90kW)
Output Power    110kW (ND), 90kW (HD)
Output Voltage    0‑400V AC (variable, matches input voltage range)
Max. Output Frequency    Up to 420Hz
Control Mode    24V DC I/O V/Hz Control (variant A)
Frame Size    Frame 6
Communication    No communication module (variant N)
Mechanical & Environmental Specifications
Parameter    Details
Enclosure    IP20, NEMA/UL Type 1, without Conformal Coating (variant 0)
Operator Interface    No HIM (Blank Plate, variant Y)
Brake Configuration    Brake IGBT Installed (variant Y), No internal braking resistor (variant A)
EMC Filter    CE EMC Filter (variant A)
Operating Temperature    0‑40°C (ambient, derate above 40°C)
Storage Temperature    ‑25‑70°C
Relative Humidity    5‑95% (non‑condensing)
Operating Elevation    Up to 1000m (3300ft) without derating
Performance & Protection
Feature    Specifications
Torque Regulation    V/Hz control with slip compensation
Current Limit    Proactive: 20‑160% of rated output current; Instantaneous: 220‑300% of rated current
Efficiency    97.5% at rated current and nominal line voltage
Overcurrent Protection    Instantaneous overcurrent trip to prevent drive damage
Power Factor    0.95‑1.0 (lagging, over the entire speed range)
