Core Model Info
Item    Details

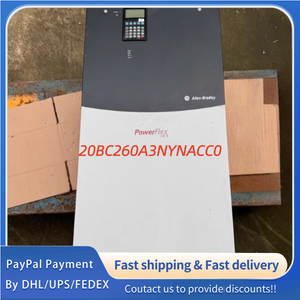

Catalog Number    20BC260A3NYNACC0
Series    PowerFlex 700 AC Drive
Voltage Rating    480V AC, 3-Phase
Current Rating    260 A (Normal Duty)
Power Rating    200 HP (150 kW) @ 460/480V, 50/60 Hz
Enclosure Type    IP54 (NEMA 12) - Dust/Tight, Indoor, No Conformal Coating
HIM (Human Interface Module)    None (Blank Cover)
Brake Option    No Internal Brake IGBT/Brake Resistor
Filter & Choke    No EMC Filter, No Common Mode Choke
Communication Module    ControlNet (Internal)
Frame Size    6
Electrical Parameters
Item    Details
Input Voltage    380-480V AC ±10%, 3-Phase, 50/60 Hz
Output Voltage    0 to input voltage, 3-Phase
Output Frequency    0-400 Hz (adjustable)
Control Mode    V/Hz, Sensorless Vector, Closed-Loop Vector (optional)
Overload Capacity    150% for 60 seconds, 200% for 3 seconds (at 480V)
Power Factor    >0.95 (at full load)
Efficiency    ≥96% (typical at full load)
PWM Frequency    2 kHz @ 480V AC
Input Power    165 kVA (typical at full load)
Mechanical Parameters
Item    Details
Mounting    Floor Mount (FM)
Cooling    Forced Air Cooling (internal fan + heat sink)
Protection Degree    IP54 (NEMA 12)
Terminal Type    Screw Terminals (Power & Control Circuits)
Environmental Specifications
Item    Details
Operating Temperature    0°C to 40°C (32°F to 104°F) (derate 1%/°C above 40°C up to 50°C)
Storage Temperature    -40°C to 70°C (-40°F to 158°F)
Humidity    5-95% RH, non-condensing
Altitude    0-1000 m (3280 ft) (derate 1%/100 m above 1000 m up to 3000 m)
Vibration    5-15 Hz (0.5 g), 15-500 Hz (0.2 g) (per IEC 60068-2-6)
Shock    15 G peak for 11 ms duration (±1.0 ms)
Pollution Degree    2 (per IEC 60664-1)
Installation Category    II (per IEC 60664-1)
Safety & Certifications
Item    Details
Safety Features    Built-in Safe Torque Off (STO) - SIL 2/PL d (optional activation); Overvoltage/Undervoltage Protection; IGBT Overheat Protection; Motor Overload Protection; Phase Loss Protection
Certifications    UL, cUL, CE, CCC, RoHS, IEC 61800-5-1, CSA C22.2 No. 14
Short Circuit Protection    IGBT-based Electronic Overcurrent Protection; Compatible with Input Line Circuit Breaker
