PN-184930 Specifications

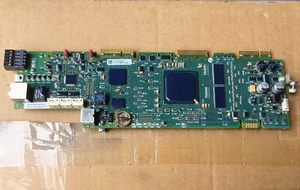

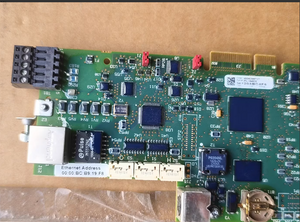

PN-184930 is the Main Control Board (also known as CPU Board) for Allen Bradley PowerFlex 755 AC Drive Series manufactured by Rockwell Automation. It serves as the central processing unit for the drive system, providing control algorithms and communication capabilities for industrial automation applications .

Core Functional Features
1. Central Control Capabilities
Motor Control Algorithms: Executes V/F control, vector control, and direct torque control for precise motor management
Parameter Monitoring: Continuously monitors and adjusts motor speed, torque, current, and voltage
Protection Mechanisms: Implements overload, short circuit, and over-temperature protection
Diagnostic Functions: Provides comprehensive drive system diagnostics and error reporting
2. Communication Capabilities
Supports EtherNet/IP, DeviceNet, and ControlNet protocols for integration with industrial networks
Enables connection with PLCs, HMIs, and other automation devices for system-wide control
Facilitates remote monitoring and configuration through network interfaces
3. Input/Output Interfaces
Multiple configurable digital and analog I/O points for system integration
Typically includes:
10 Inputs: For functions like servo enable, mode selection, gain switching, alarm clearance
6 Outputs: For functions like alarm (ALM), ready (S-RDY), brake release (BRK-OFF), zero-speed detection (ZSP)
Technical Specifications (Typical for PowerFlex 755 Series)
Processor    High-performance DSP with 100MHz+ processing speed for real-time control
Power Supply    Derived from drive's main power circuit; typically 24V DC auxiliary supply
| Environmental Conditions |
Operating Temperature: -10°C to +40°C
Humidity: <85% non-condensing |
Physical Characteristics
Form Factor: PCB designed for internal installation within PowerFlex 755 drive enclosure
Mounting: Secured within drive chassis using standard mounting brackets
Connectors: Multiple specialized connectors for power, control signals, and communication
