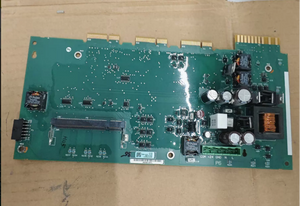

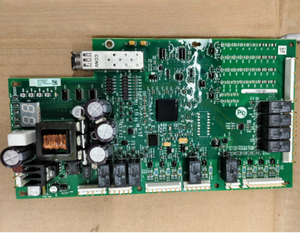

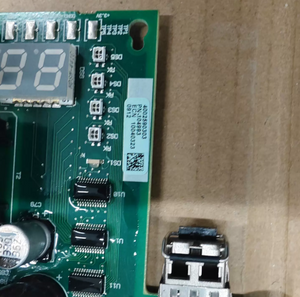

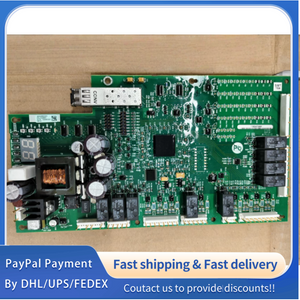

1PC used 100% tested PN-104993 Allen‑Bradley Voltage Regulator & Power Conditioning Board (legacy model, also referenced as SP‑117528 spare parts kit) designed for PowerFlex 700/700S/700HF AC drives (15–110 kW, 200–480 VAC) #QYM001 J1688
1PC used 100% tested PN-104993 Allen‑Bradley Voltage Regulator & Power Conditioning Board (legacy model, also referenced as SP‑117528 spare parts kit) designed for PowerFlex 700/700S/700HF AC drives (15–110 kW, 200–480 VAC) #QYM001 J1688
| Parameter | Technical Value |
|---|---|
| Part Number | PN‑104993 (Revision 08; Spare Kit: SP‑117528) |
| Product Type | Voltage Regulator & Power Conditioning Board |
| Primary Compatibility | PowerFlex 700/700S/700HF AC Drives (15–110 kW, 200–480 VAC); pairs with PN‑204411 MCB |
| Input Power | 24 VDC (from drive logic supply); 3‑phase 480 VAC (auxiliary power input, 50/60 Hz) |
| Regulated Outputs | 5 VDC (2.0 A max), 12 VDC (1.5 A max), 24 VDC (0.8 A max); ±1% voltage regulation |
| Protection Features | Overvoltage clamping (5.6 V / 12.6 V / 25.2 V thresholds); overcurrent limiting (3 A per rail); reverse polarity protection; thermal shutdown (85°C) |
| Operating Temperature | 0–55°C (32–131°F); Storage Temperature: -40–85°C (-40–185°F) |
| Humidity Tolerance | 5%–95% RH, non‑condensing |
| Isolation Rating | 2500 VAC (power input to logic outputs); 1500 VAC (output rail‑to‑rail) |
| Mounting Type | Drive‑chassis integrated mount; secured via 2 mounting clips; compatible with standard PowerFlex 700‑series chassis |
| Certifications | CE, UL Listed, cUL Certified, RoHS Compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
