Basic Specifications

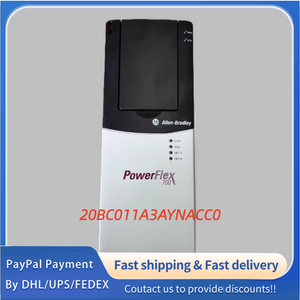

Model : 20BC011A3AYNACC0
Series : PowerFlex 700 AC Drive
Frame Size : 2
Nominal Input Voltage : 480V AC, 3-Phase
Nominal Input Frequency : 50/60 Hz
Input Current (RMS) : 11 A
Nominal Output Power : 5.5 kW (7.5 HP)
Output Current (RMS) : 11 A
Output Voltage : 0 to Input Voltage, 3-Phase
Output Frequency : 0 to 400 Hz
Electrical Characteristics
Voltage Tolerance : -15% / +10% of Nominal Input Voltage
Power Factor : ＞0.95 (at full load)
Efficiency : Typical 96% (at rated load and voltage)
Control Mode : V/Hz, Sensorless Vector, Closed-Loop Vector (optional)
Overload Capacity : 150% of rated current for 60 seconds, 200% for 3 seconds
DC Bus Voltage : 580-750V DC (rectified from 480V AC input)
Mechanical Specifications
Enclosure Type : NEMA 12 (IP54) / Dust-Tight & Drip-Tight
Mounting Type : Panel Mount
Operating Temperature Range : 0 °C to 40 °C (32 °F to 104 °F) (no derating); -10 °C to 50 °C (14 °F to 122 °F) (with derating)
Storage Temperature Range : -40 °C to 70 °C (-40 °F to 158 °F)
Altitude Derating : 1000 m (3281 ft) max at 40 °C, 1% derating per 100 m above 1000 m
Humidity : 5% to 95% non-condensing (operating/storage)
Communication & I/O
Integrated Communication : EtherNet/IP (primary), built-in DeviceNet
Digital Inputs : 6 configurable digital inputs (24V DC, sinking/sourcing)
Digital Outputs : 2 configurable Form A relay outputs (250V AC / 30V DC, 5 A)
Analog Inputs : 2 universal analog inputs (0-10V DC / 4-20 mA, configurable scaling)
Analog Outputs : 1 universal analog output (0-10V DC / 4-20 mA, 12-bit resolution)
High-Speed I/O : 1 high-speed pulse input (up to 100 kHz), 1 high-speed pulse output (up to 100 kHz)
Optional I/O : Expansion card support for additional analog/digital I/O
Protection Features
Electrical Protection : Instantaneous overcurrent, DC bus overvoltage/undervoltage, input phase loss, output short circuit
Thermal Protection : IGBT module overtemperature, heatsink overtemperature, internal control circuit overheating
Motor Protection : PTC thermistor input (motor thermal overload), locked rotor detection, motor phase loss
Ground Fault Protection : GFCI ground fault current detection (trip on fault)
Environmental Protection : Surge protection (input side), EMC compliance (EN 61800-3)
General Features
Brake Function : Optional external brake chopper (for dynamic braking, requires external resistor)
Regenerative Operation : Optional 4-quadrant regenerative unit (for energy feedback)
Keypad : Full-function digital keypad (local/remote, parameter editing, fault diagnostics, copy/paste parameters)
Programmability : Custom parameter sets, application macros (pump, fan, conveyor, mixer, etc.), password protection
Diagnostics : Real-time fault code display, event log (up to 100 events), current/voltage/frequency/temperature monitoring
Compliance : UL, cUL, CE, CSA, RoHS compliant
