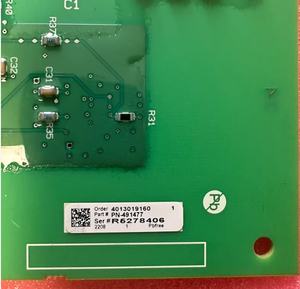

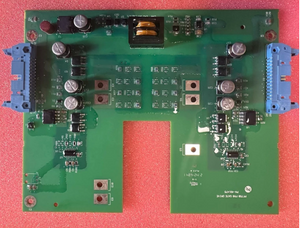

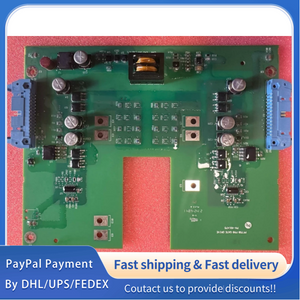

1PC used 100% tested PN-491477 Allen-Bradley High-Density Digital I/O Expansion Board, exclusively designed for PowerFlex 755T/758 AC drives (250–1500 kW, 400–690 VAC)#QYM001
1PC used 100% tested PN-491477 Allen-Bradley High-Density Digital I/O Expansion Board, exclusively designed for PowerFlex 755T/758 AC drives (250–1500 kW, 400–690 VAC)#QYM001
| Parameter | Technical Value |
|---|---|
| Part Number | PN-491477 (Spare Kit: SP-502381) |
| Product Type | High-Density Digital I/O Expansion Board |
| Primary Compatibility | PowerFlex 755T/758 AC Drives (250–1500 kW, 3-phase 400–690 VAC); CompactLogix 5480 PLCs |
| Logic Power Supply | 24 VDC (±10% tolerance), 1.2 A max current draw |
| Digital Inputs (DI) | 32 channels (sinking/sourcing configurable, 24 VDC); dry/wet contact compatible; response time <1 ms |
| Digital Outputs (DO) | 16 channels (transistor outputs, 24 VDC); 2 A per channel max load; short-circuit protected |
| Input/Output Isolation | 3000 VAC (field circuits to drive logic); 2500 VAC (channel-to-channel isolation) |
| Communication Interface | Drive Local Bus (DLB) for real-time data exchange with MCB; Ethernet/IP pass-through for PLC integration |
| Protection Features | ESD protection (±15 kV air / ±8 kV contact); reverse polarity protection; overcurrent limiting; thermal shutdown (80°C threshold) |
| Operating Temperature | 0–60°C (32–140°F); Storage Temperature: -40–85°C (-40–185°F) |
| Humidity Tolerance | 5%–95% RH, non-condensing |
| Vibration Resistance | 5–500 Hz, 2 g RMS (operational); 10 g RMS (non-operational, shipping/storage) |
| Mounting Type | Drive-chassis integrated mount (6 M6 screws); compatible with PowerFlex 755T/758 cabinet frames |
| Certifications | CE, UL Listed, cUL Certified, RoHS 2 Compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
