Parameter    Specification

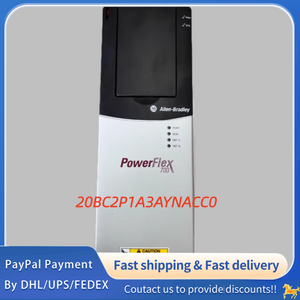

Model Number    20BC2P1A3AYNACC0
Product Series    PowerFlex 700 AC Drive
Nominal Input Voltage    480V AC, 3-Phase
Nominal Input Frequency    50/60 Hz
Continuous Output Current    2.1 A
Output Power (Normal Duty)    1.0 HP (0.75 kW)
Output Power (Heavy Duty)    0.75 HP (0.55 kW)
1-Min Overload Current    2.4 A
3-Sec Peak Overload Current    3.2 A
Output Frequency Range    0 – 400 Hz
Control Mode    Sensorless Vector Control, V/Hz Control
Enclosure Type    NEMA/UL Type 1 (IP20), Chassis Mount
Conformal Coating    Included (PCB Anti-corrosion Protection)
Brake Component    IGBT Brake Chopper Pre-installed (No Resistor)
EMC Filter    Second Environment EMC Filter (CE EMC Compliant)
Communication Module    Allen-Bradley DeviceNet (Built-in/Pre-configured)
Digital I/O    Standard 24V DC I/O (Configurable for Speed/Torque)
Analog I/O    2 Analog Inputs, 1 Analog Output (0-10V/4-20mA)
Overload Capacity    150% for 60s, 200% for 3s (at 40°C ambient)
Operating Temperature    -10°C to +50°C (14°F to 122°F)
Storage Temperature    -40°C to +70°C (-40°F to 158°F)
Altitude Rating    1000m (3280ft) @ 50°C, derate 1% per 100m above
Cooling Method    Forced Air Cooling (Internal Fan)
Protection Class    IP20 (Chassis)
Certifications    CE, UL, cUL, RoHS, C-Tick, ATEX (Optional)
Voltage Fluctuation Tolerance    ±10% of Nominal Input Voltage
