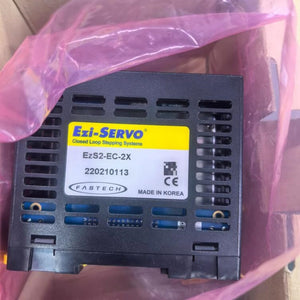

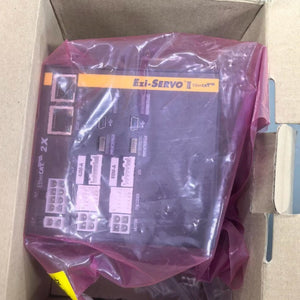

1 pc for new EzI-SERVO II EtherCAT 4X (Model: EzS2-EC-2X) #LYQ007
1 pc for new EzI-SERVO II EtherCAT 4X (Model: EzS2-EC-2X) #LYQ007
| Item | Specification |
|---|---|
| Product Model | EzS2-EC-2X (2-axis) / EzS2-EC-4X (4-axis) |
| Control Type | Closed-loop control with 32-bit MCU |
| Power Supply | DC 24V ±10% |
| Power Consumption | Max. 500mA (excluding motor current) |
| Motor Compatibility | Closed-loop stepping motors (28/35/42/56/86 mm frame) |
| Encoder Resolution | 10,000 ppr / 20,000 ppr |
| Speed Range | 0–3,000 r/min |
| EtherCAT Protocol | CoE (CiA402 Drive Profile), FoE (Firmware Download) |
| Communication Cycle | Min. 0.25 ms |
| Operation Modes | Profile Position (PP), Homing (HM), Cyclic Synchronous Position (CSP) |
| Synchronization Modes | Free Run, SM Event, DC SYNC Event |
| Digital Inputs | 3 dedicated (LIMIT+, LIMIT-, ORIGIN) + 6 general-purpose (photocoupler) + 2 torque-off |
| Digital Outputs | 5 general-purpose (photocoupler) + 1 brake + 1 torque-off status (TQMON) |
| Operating Temp | 0–50 °C |
| Storage Temp | -20–70 °C |
| Humidity | 35–85% RH (non-condensing, operating); 10–90% RH (non-condensing, storage) |
| Vibration Resistance | 0.5 g |
| Protection | Over-current, over-speed, over-temperature, over-regen voltage, motor connection, ROM error |
| LED Indicators | Power, In-Position, Servo On, Alarm |
| Dimensions | Compact multi-axis module (2/4-axis) |
| Weight | Approx. 0.31 kg (typical) |
| Certifications | RoHS compliant |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
