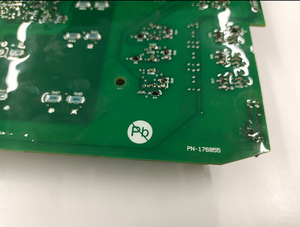

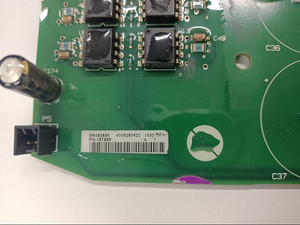

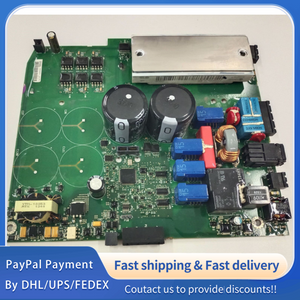

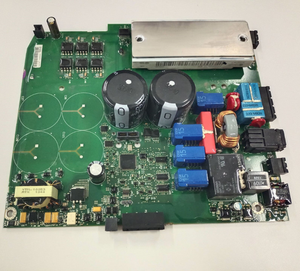

1PC used 100% tested PN-157998 PN-176855 for 2198-H015-ERS for the analog signal processing board of Allen-Bradley (AB) PowerFlex 700 series medium-voltage frequency converters #QYM001
1PC used 100% tested PN-157998 PN-176855 for 2198-H015-ERS for the analog signal processing board of Allen-Bradley (AB) PowerFlex 700 series medium-voltage frequency converters #QYM001
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | PowerFlex 700 series medium-voltage AC frequency converters; typical power range 15–250kW (subject to main drive model) |
| Core Functions | Analog signal filtering & amplification, signal isolation (between analog circuits and digital control circuits), A/D and D/A conversion, analog value scaling & calibration, signal fault detection and alarm |
| Analog Input Specifications | - Channel count: 4 channels
|
| Analog Output Specifications | - Channel count: 2 channels
|
| Power Supply | Control power: DC 24V (derived from drive auxiliary power module); Power consumption ≤ 6W |
| Protection Functions | Input overvoltage protection, short-circuit protection for output channels, ESD protection for signal ports (compliant with IEC 61000-4-2); Compliant with IEC 61800-5-1 |
| Environment & Structure | Operating temperature: -10–60℃; Storage temperature: -40–85℃; PCB material: FR-4 with anti-corrosion coating; Protection class: IP20 (cabinet mounting); Relative humidity: 5%–95% (non-condensing) |
| Physical Specifications | Dimensions: approx. 120×90×25mm; Weight: approx. 150g; PCB flame retardant rating: 94V-0 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
