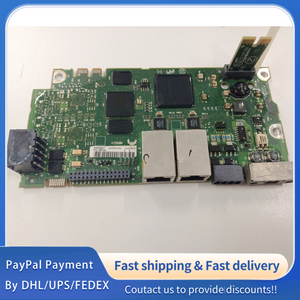

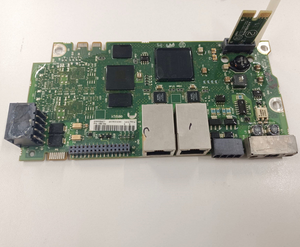

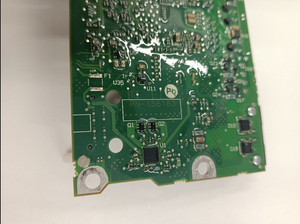

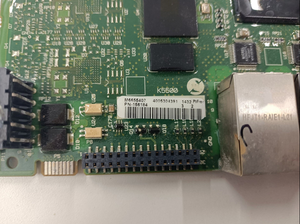

1PC used 100% tested PN-156184 PN-156183 FOR 2198-H015-ERS the bus communication interface board of Allen-Bradley (AB) PowerFlex 700 series low-voltage frequency converters #QYM001 J1688
1PC used 100% tested PN-156184 PN-156183 FOR 2198-H015-ERS the bus communication interface board of Allen-Bradley (AB) PowerFlex 700 series low-voltage frequency converters #QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | PowerFlex 700 series low-voltage AC frequency converters; typical power range 15–110kW (subject to main drive model) |
| Core Functions | Multi-protocol communication conversion, real-time data transmission between drive and upper system, remote parameter read/write, fault alarm signal upload, communication status self-diagnosis |
| Supported Protocols | DeviceNet, Modbus RTU, Allen-Bradley DH-485; protocol switching via on-board DIP switches |
| Interface Configuration | 1× DeviceNet port (5-pin micro connector); 1× RS-485 port (terminal block for Modbus/DH-485); 2× status indicator LEDs (Power/Communication); 1× protocol selection DIP switch |
| Power Supply | Control power: DC 24V (derived from drive auxiliary power module); Power consumption ≤ 3W |
| Protection Functions | ESD protection for communication ports (compliant with IEC 61000-4-2, ±8kV contact discharge); Communication disconnection detection; Control power undervoltage protection; Compliant with IEC 61800-5-1 |
| Environment & Structure | Operating temperature: 0–55℃; Storage temperature: -40–85℃; PCB material: FR-4 with anti-corrosion coating; Protection class: IP20 (cabinet mounting); Relative humidity: 5%–95% (non-condensing) |
| Physical Specifications | Dimensions: approx. 100×70×20mm; Weight: approx. 80g; PCB flame retardant rating: 94V-0 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
