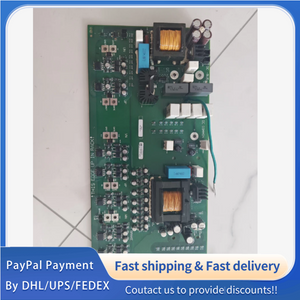

1PC used 100% tested PN-202496 Allen‑Bradley Power Driver Board for PowerFlex 753/755 AC drives (15–75 kW, 400–480 VAC) #QYM001 J1688
1PC used 100% tested PN-202496 Allen‑Bradley Power Driver Board for PowerFlex 753/755 AC drives (15–75 kW, 400–480 VAC) #QYM001 J1688
| Parameter | Technical Value |
|---|---|
| Part Number | PN‑202496 (Spare Kit: SP‑210545) |
| Product Type | Power Driver Board (Inverter Stage) |
| Primary Compatibility | PowerFlex 753/755 (15–75 kW, 400–480 VAC, 3‑phase) |
| IGBT Module | 600 V / 200 A (2‑pack configuration, 3‑phase bridge) |
| DC Link Voltage | 510–650 VDC (nominal); 680 VDC (max overvoltage threshold) |
| Current Capacity | 180 A (continuous); 600 A (peak, 2‑second duration) |
| Cooling System | Single heatsink with 2x 24 VDC / 0.8 A cooling fans |
| Gate Driver | 15 V / 5 A isolated gate driver (for IGBT switching) |
| Protection Features | Overcurrent (800 A, 10 ms trip); overtemperature (90°C heatsink threshold); short‑circuit protection; undervoltage lockout (450 VDC) |
| Isolation Rating | 2500 VAC (power stage to logic circuits) |
| Operating Temperature | 0–55°C (32–131°F); Storage: -40–85°C (-40–185°F) |
| Humidity Tolerance | 5%–95% RH, non‑condensing |
| Mounting | Chassis‑mounted (4 M6 screws); compatible with standard PowerFlex 753/755 chassis |
| Certifications | CE, UL Listed, cUL Certified, RoHS Compliant |
