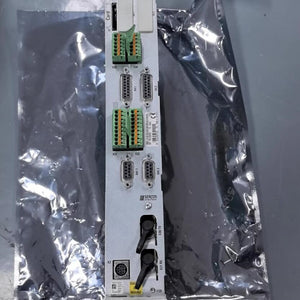

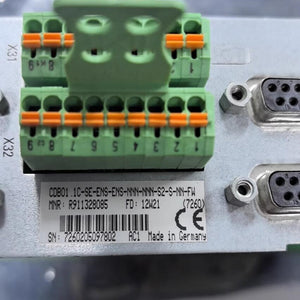

1 PC used Bosch Rexroth Control Unit CDB01.1C-SE-ENS-ENS-NNN-NNN-S2-S-NN-FW#LYQ007
1 PC used Bosch Rexroth Control Unit CDB01.1C-SE-ENS-ENS-NNN-NNN-S2-S-NN-FW#LYQ007
| Parameter | Value |
|---|---|
| Product Type | Double-axis control unit (CDB series) |
| Master Communication | SERCOS interface (SE) |
| Number of Axes | 2 (dual-axis independent control) |
| Encoder Interface (Axis 1/2) | ENS: IndraDyn / Hiperface / 1 Vpp / TTL (12V supply) |
| Current Control Cycle Time | 125 μs |
| SERCOS Cycle Time (min) | 1000 μs |
| Switching Frequencies | 2 kHz, 4 kHz, 8 kHz (selectable) |
| Digital Inputs | 22 channels |
| Analog Inputs | 1 channel |
| Digital Outputs | 4 channels |
| Analog Outputs | 2 channels |
| Probe Inputs | 2 (Type 2) |
| Encoder Supply Voltage | Max 12.3 V |
| Encoder Supply Current | 500 mA |
| I/O Supply Max Current | 1.1 A |
| Inrush Current | 6 A (max) |
| Max Inrush Pulse Width | 60 ms |
| Base Power Consumption | 9 W |
| A/D Converter Resolution | 12 Bit |
| Analog Bandwidth (-3 dB) | 500 kHz |
| Differential Input Resistance | 120 Ohm |
| Serial Interface | RS232 (upgradeable to RS485) |
| Network Connector | RJ-45 (8-pin) |
| Safety Option | Without safety function (S) |
| Operating Temperature | -20 °C to +80 °C |
| Storage | Parameters stored on MMC (Multi Media Card) |
| Application | Industrial automation, servo drive control |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
