Parameter    Specification

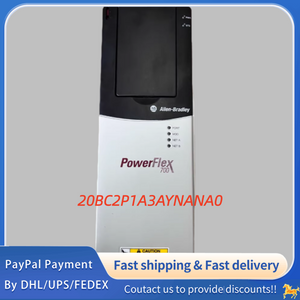

Model Number    20BC2P1A3AYNANA0
Product Series    Allen-Bradley PowerFlex 700 AC Drive
Nominal Input Voltage    480V AC, 3-Phase
Nominal Input Frequency    50/60 Hz, ±5% tolerance
Continuous Output Current    2.1 A (@40°C ambient temperature)
Output Power (Normal Duty)    0.75 kW (1.0 HP)
Output Power (Heavy Duty)    0.55 kW (0.75 HP)
1-Min Overload Current    2.4 A (114% of continuous current)
3-Sec Peak Overload Current    3.2 A (152% of continuous current)
Output Frequency Range    0 – 400 Hz, 0.01 Hz adjustable step
Control Mode    Sensorless Vector Control, V/Hz Control, Torque Control
Enclosure Type    NEMA/UL Type 1 (IP20), Chassis Mount
Conformal Coating    Included (PCB environmental protection)
Brake Component    IGBT Brake Chopper (Pre-installed, no external resistor)
EMC Filter    Second Environment EMC Filter (CE EMC compliant)
Communication Module    No Built-in Communication Module (Optional add-on)
Digital I/O    6×24V DC Inputs, 2×24V DC Outputs (fully configurable)
Analog I/O    2×Analog Inputs (0-10V DC/4-20mA), 1×Analog Output (0-10V DC/4-20mA)
Overload Capacity    150% for 60s, 200% for 3s (@40°C, derate above)
Operating Temperature Range    -10°C to +50°C (14°F to 122°F)
Storage Temperature Range    -40°C to +70°C (-40°F to 158°F)
Altitude Rating    1000m (3280ft) @50°C, 1% derate per 100m above
Cooling Method    Internal integrated forced air cooling (built-in fan)
Protection Class    IP20 (chassis), IP54 optional with dedicated enclosure
Insulation Class    Class F
Input Voltage Tolerance    ±10% of nominal 480V AC
Certifications    CE, UL, cUL, RoHS, C-Tick, IEC 61800-5-1
Motor Compatibility    3-Phase AC induction motors (general purpose)
