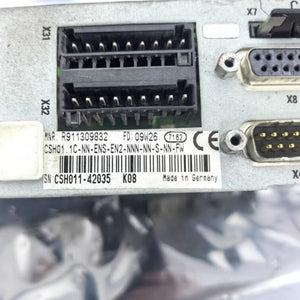

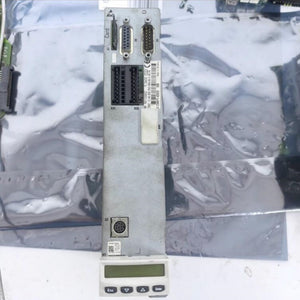

1 pc for used Bosch Rexroth CSH01.1C-NN-ENS-EN2-NNN-NN-S-NN-FW (R911309832) #LYQ007
1 pc for used Bosch Rexroth CSH01.1C-NN-ENS-EN2-NNN-NN-S-NN-FW (R911309832) #LYQ007
| Parameter | Value |
|---|---|
| Manufacturer | Bosch Rexroth Indramat |
| Product Type | IndraDrive Single‑Axis Control Section (Advanced) |
| Model | CSH01.1C‑NN‑ENS‑EN2‑NNN‑NN‑S‑NN‑FW |
| Order Number | R911309832 |
| Control Supply Voltage | 24 V DC |
| Power Consumption | 7.5 W |
| Inrush Current (Typical) | 4 A |
| Inrush Pulse Width (Max) | 100 ms |
| Dimensions (W × D × H) | 103 mm × 49.5 mm × 241 mm |
| Control Panel | Standard (single‑line display) |
| Firmware | Not included (ordered separately) |
| Master Communication | Not equipped (NN) |
| Encoder Interface 1 (X4, ENS) | IndraDyn / Hiperface / 1 Vpp / TTL; 12 V supply |
| Encoder Interface 2 (X8, EN2) | EnDat 2.1 / 1 Vpp / TTL; 5 V supply |
| Analog Inputs | 1 channel |
| Analog Outputs | 2 channels (5 V / 1 mA) |
| Digital Inputs | 7–11 programmable channels |
| Digital Outputs | 4 channels (24 V DC, 0.5 A) |
| Relay Contact | 1 (24 V DC, 1 A) |
| Serial Interface | 1 × RS232 (D‑Sub 9‑pin) |
| Control Cycle Times | Current: 62.5–125 μs; Velocity: 125–250 μs; Position: 250–500 μs |
| Switching Frequency | 2 kHz, 4 kHz, 8 kHz, 12 kHz, 16 kHz |
| Safety Option | S (Safe Motion, SIL2 / Cat.3 / PL d) |
| Operating Temperature | 0 °C to +40 °C |
| Relative Humidity | ≤ 90% (non‑condensing) |
| Emission / Immunity | IEC 61800‑3 Category C3 |
