Category    Parameter Details

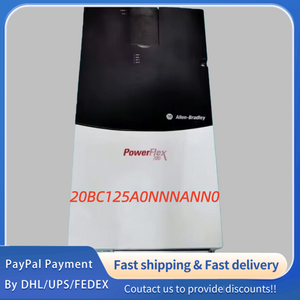

Product Identification    Product Line: PowerFlex 700 AC Drive
Model Number: 20BC125A0NNNANN0
Frame Size: 7
Voltage Code: 0 (400 VAC Class)
Electrical Input    Voltage Class: 400 VAC, 3‑Phase
Input Voltage Range: 323–480 VAC, 3‑Phase, 50/60 Hz
Input Current: 135 A (max, at full load)
Electrical Output    Output Voltage Range: 0–Input Voltage, 3‑Phase
Output Current Rating: 125 A (100% Load, 400 VAC, 50/60 Hz)
Power Rating: 55 kW (75 HP) at 400 VAC
Control Modes    V/Hz Control, Sensorless Vector Control, Vector Control (optional encoder feedback required)
I/O Configuration    Digital Inputs: 6 configurable channels
Analog Inputs: 2 channels (0–10 VDC / 4–20 mA)
Digital Outputs: 2 Form C relay outputs (5 A @ 250 VAC / 30 VDC)
Analog Outputs: 1 channel (0–10 VDC / 4–20 mA)
Communication    Default: No communication module installed
Supported Protocols (via optional cards): DeviceNet, EtherNet/IP, ControlNet
EMC Filter: None (N code)
Common Mode Choke: None (N code)
Mechanical & Environmental    Enclosure Type: NEMA 1 / IP21 (indoor open type)
Operating Temperature: -10 °C to 40 °C (14 °F to 104 °F); derate above 40 °C
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Cooling Method: Forced Air Cooling

Protection Functions    Motor Protection: Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault, Overheating
Drive Protection: Internal Overload, IGBT Overcurrent, Thermal Shutdown
Key Features    No EMC filter (NN code), no conformal coating (AN0 code), standard keypad
