Item    Details

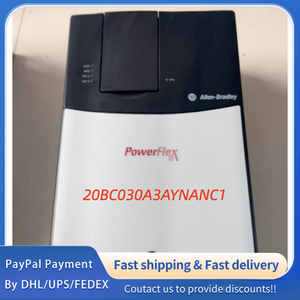

Model    20BC030A3AYNANC1
Brand    Allen‑Bradley (Rockwell Automation)
Product Line    PowerFlex 700 AC Drive
Product Type    Adjustable Frequency AC Drive (VFD)
Application    3‑Phase AC Induction Motor Control (Pumps, Fans, Conveyors, General Industrial)
Key Features    Vector Control, Built‑in EMC Filter, IP20 Enclosure, Standard I/O, Basic HIM, Conformal Coating
Electrical Specifications
Parameter    Value
Rated Power (Normal Duty)    15 kW (20 HP)
Rated Power (Heavy Duty)    11 kW (15 HP)
Rated Output Current    30 A (RMS, Normal Duty); 25 A (RMS, Heavy Duty)
Input Voltage    3‑Phase 380‑480 V AC (±10%), 50/60 Hz
Output Voltage    0‑Input Voltage (3‑Phase, PWM‑Controlled)
Output Frequency    0‑500 Hz
Control Power Supply    110‑120 V AC (±10%), 50/60 Hz
Brake IGBT    Integrated (Dynamic Braking Capability, No Internal Resistor)
EMC Filter    Built‑in (CE Compliant, EN 61800‑3)
Control & Interface
Parameter    Details
Control Mode    V/Hz, Sensorless Vector, Closed‑Loop Vector (with Encoder Feedback)
Command Interface    Digital I/O (8 DI/4 DO), Analog Inputs (2 AI: ±10 V DC / 0‑20 mA), RS‑485 (Modbus RTU)
Operator Interface    Basic HIM (Human Interface Module) for Local Parameter Configuration
Protection Functions    Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault, Motor Overload, Phase Loss
Safety Features    Emergency Stop (E‑Stop) Input, Optional Safe Torque Off (STO) with 20‑COMM‑S Module

1.Our company specializes in automation industrial control accessories. We have more than 100,000 products.
?Including : frequency converter, servo driver, servo motor,data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial?? computer,encoder...etc
2.We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over the world.
3.We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store may not accurate,before purchasing please contact us to provide you with exactly quote and real pictures.
4. If you can not find the product which you need in our store, please contact us. We will check it for you.
