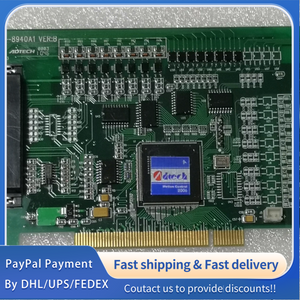

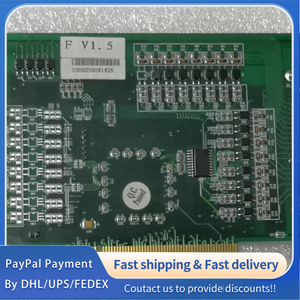

1PC used ADT-8940A1 VER:B ADTECH 4-axis PCI motion control card

Sale price $110.00
40 People are viewing this right now
Add to Wishlist
Add to Compare

1PC used ADT-8940A1 VER:B ADTECH 4-axis PCI motion control card
1PC used ADT-8940A1 VER:B ADTECH 4-axis PCI motion control card
Sale price$110.00
1PC used ADT-8940A1 VER:B ADTECH 4-axis PCI motion control card

1PC used ADT-8940A1 VER:B ADTECH 4-axis PCI motion control card

$110.00




Core English Parameters (ADT-8940A1)


Category Specifications
Basic Info Model: ADT-8940A1

Brand: ADTECH (Adtech Shenzhen)

Type: 4-axis servo/stepper motion control card

Bus: 32-bit PCI (Plug & Play)

Max Axes per System: 64 (16 cards)

Dimensions: 160×107 mm

Weight: ~180 g
Pulse & Feedback Axis Count: 4 independent axes

Pulse Output: PUL+DIR / CW+CCW (differential)

Max Pulse Frequency: 2 MHz (0.1% tolerance)

Feedback Input: 32-bit A/B phase encoder, 2 MHz max, range ±2³¹

Position Latch: 4 channels (external trigger)
Motion Control Interpolation: 2-4 axis linear (1 MHz max); 2-axis circular (software)

Acceleration: T/S-curve, online speed/position change

Hardware Cache: 2048 bytes

Handwheel: Supported (incremental)

Home Search: Multiple modes (encoder Z-phase, limit, stop)
I/O Interface Digital Input: 40-ch opto-isolated (includes 8 encoder feedback inputs)

Digital Output: 16-ch open-collector

Axis I/O: 2 limit (±), 2 stop, 1 servo in-position, 1 servo alarm per axis

I/O Response: ~500 μs

Isolation: Photoelectric coupler (2.5 kV)
Protection & Safety Protection: Overcurrent, short-circuit (I/O), ESD

Emergency Stop: Hardware-based

Isolation Voltage: 2500 V AC (input-output)
Software & Environment OS Support: DOS, Windows 95/98/NT/2000/XP/WIN CE

SDK: VC++/C#/VB.NET/LabVIEW/Delphi

Debug Tool: ADTMotionPro

Temp: 0-60°C (operating); -20-80°C (storage)

Humidity: 5-95% RH (non-condensing)



1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over the world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store may not accurate， before purchasing please contact us to provide you with exactly quote and real pictures.
4. If you can not find the product which you need in our store, please contact us .we will check it for you.
