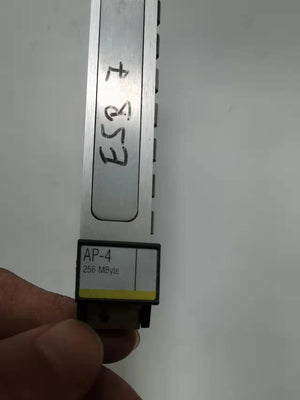

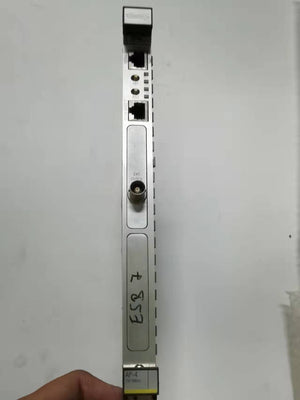

1pc used Tektronix AP-4 Control Board 7KK1200-4AF11 #LYQ007
1pc used Tektronix AP-4 Control Board 7KK1200-4AF11 #LYQ007
1pc used Tektronix AP-4 Control Board 7KK1200-4AF11 #LYQ007
Part Number: 7KK1200-4AF11; Model: AP-4; Product Name: Tektronix AP-4 Industrial Control Board; Product Series: Tektronix AP Series, High-Precision Signal Control & Interface Board for Test & Measurement Systems
Brand: Tektronix (Tektronix, Inc., a global leader in test, measurement, and monitoring solutions, specializing in electronic test equipment, signal processing modules, and industrial control boards. The brand is renowned for high-precision, reliable products tailored to aerospace, defense, semiconductor, and industrial automation industries worldwide, delivering cutting-edge performance for critical signal control and analysis tasks.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: Rack-Mounted Industrial Control Board, engineered as a core control unit for Tektronix test & measurement systems, enabling precise signal control, system coordination, and data interaction between test modules and host equipment.
Core Application: Widely integrated in Tektronix multi-channel signal generation systems, ultra-wideband signal acquisition & analysis platforms, frequency hopping signal comprehensive test systems, and electromagnetic compatibility (EMC) testing equipment. Specifically suitable for high-precision test scenarios requiring stable signal control, real-time data transmission, and seamless integration with Tektronix oscilloscopes, signal generators, and other test instruments.
Core Features: Advanced signal processing circuitry for high-precision control and synchronization; Rich built-in interfaces for seamless connection with Tektronix test modules and external devices; Industrial-grade components ensuring low noise and high stability in harsh test environments; Comprehensive self-diagnostic functions for quick fault localization; Support for Tektronix proprietary control protocols and mainstream industrial communication standards; Compact rack-mount design for space-saving system integration; Compliance with international test equipment safety and EMC standards.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Processing & Signal Control Parameters
Processor: 32-bit High-Performance RISC Processor (1.2 GHz), Optimized for Signal Control & Real-Time Data Processing; Instruction Execution Speed: ≥ 2.0 MIPS for Logic Control, ≥ 1.2 MIPS for Floating-Point Signal Calculation;
Signal Control Precision: ±0.01% Full Scale (FS) for Analog Signal Control, 1ns Time Synchronization Accuracy for Multi-Channel Signal Coordination; Signal Response Time: ≤20ms for Command Execution and Signal Feedback;
Memory Configuration: RAM: 512 MB DDR3 SDRAM (For Real-Time Data Processing and Temporary Storage), Flash Memory: 32 MB (For System Firmware and Configuration Parameter Storage); Battery Backup: 3.6V Lithium Battery, Backup Time: ≥ 5 Years (For Configuration Data Retention During Power Off).
2.2 Communication & Interface Parameters
Ethernet Interfaces: 2×Gigabit Ethernet Ports (RJ45 Connectors), Supports TCP/IP, UDP, FTP, and Tektronix Proprietary Control Protocols, Data Transfer Rate: 10/100/1000 Mbps (Auto-Negotiation), Latency: ≤5ms;
Serial Interfaces: 1×RS-232 Port (DB9 Female Connector, For Local Configuration and Debugging), 1×RS-485 Port (Optically Isolated, For Multi-Device Daisy-Chain Connection), Baud Rate: 1200 bps ~ 115200 bps (Configurable);
Module Interface: 8×High-Speed Differential Signal Ports (For Connecting Tektronix Test Modules), Signal Bandwidth: Up to 1 GHz; USB Interface: 1×USB 2.0 Port (Type B, For Firmware Update and Local Data Transfer);
Supported Protocols: Tektronix Proprietary Control Protocol, Modbus TCP/IP, SCPI (Standard Commands for Programmable Instruments), Compatible with Third-Party Test Equipment Supporting SCPI Protocol.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
