Parameter Category    Details

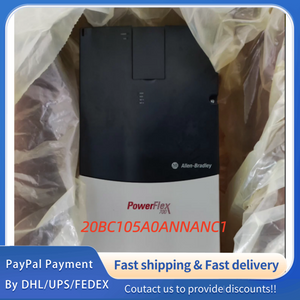

Model Identification    PowerFlex 700 AC Drive
Frame Size: 7
Part Number: 20BC105A0ANNANC1
Product Line: 20B
Key Feature: Conformal Coating (C1 suffix)
Power Ratings    Input Voltage: 400 V AC, 3‑phase
Input Frequency: 50/60 Hz
Output Current: 105 A
Output Power: 55 kW (75 hp) @ 400 V (normal duty); 45 kW (60 hp) @ 400 V (heavy duty)
Voltage Class: Low Voltage (≤ 600 V AC)
Control Modes    V/Hz, Sensorless Vector, Vector Control (with optional encoder), Torque Control, Built‑in PID
Communication & Control    Communication: None (no network module)
Control: Vector Control Cassette
I/O Voltage: 24 V DC
CE Filter: Yes
CM Choke: Yes
Dynamic Braking Transistor: Yes
Internal Braking Resistor: No
Operator Interface: Blank Cover
Feedback: None (open‑loop default)
Special Coating: Conformal Coating (for harsh environments)
Protection & Installation    IP Rating: IP20 (front face, open type)
NEMA Rating: NEMA/UL Type 1
Cooling: Forced Air Cooling
Mounting: Panel Mount
Environmental Limits    Operating Temperature: 0–40 °C (32–104 °F); derate above 40 °C
Storage Temperature: -40–70 °C (-40–158 °F)
Humidity: 5%–95% RH, non‑condensing
Altitude: ≤ 1000 m (3300 ft) no derate; 1% derate per 100 m above 1000 m
Safety & Compliance    Protection: Overcurrent, Overvoltage, Undervoltage, Thermal Overload, Short Circuit
Certifications: UL, cUL, CE, CSA, RoHS
