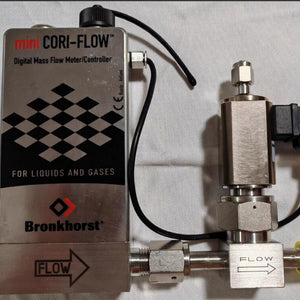

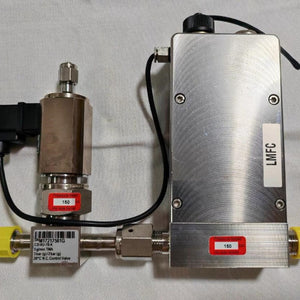

1 pc used Bronkhorst M13-AAD-88-0-S + C2I-IIU-78-K Flow Meter #LYQ007
1 pc used Bronkhorst M13-AAD-88-0-S + C2I-IIU-78-K Flow Meter #LYQ007
| Parameter | Specification |
|---|---|
| Product Model | M13-AAD-88-0-S |
| Measurement Principle | Coriolis effect, direct mass flow measurementBronkhorst |
| Flow Range | 0…2000 g/h (nominal: 1000 g/h)Bronkhorst |
| Accuracy (Mass Flow) | Gases: ±0.5% of rate; Liquids: ±0.5% of rate |
| Repeatability | ±0.05% of rate ± ½(ZS × 100/actual flow)%Bronkhorst |
| Zero Stability (ZS) | < ±0.2 g/h |
| Response Time (t98%) | ≤ 200 msecBronkhorst |
| Warm-up Time | approx. 30 min after power-up |
| Density Accuracy | < ±5 kg/m³ |
| Temperature Accuracy | ±0.5 °CBronkhorst |
| Process Temperature | 0…70 °C |
| Operating Pressure | Max. 200 bar (absolute)Bronkhorst |
| Pressure Rating | 200 bar (higher on request)Bronkhorst |
| Seal Type | Metal sealBronkhorst |
| Material (Wetted Parts) | Standard: Stainless steel 316L; Optional: Hastelloy C22Bronkhorst |
| Ingress Protection | IP65 (weatherproof)Bronkhorst |
| Power Supply | +15…24 VDC; Max. ripple: 50 mV ttBronkhorst |
| Power Consumption | Max. 3 WBronkhorst |
| Analog Outputs | 0…5(10) VDC (load > 2 kΩ); 0(4)…20 mA (sourcing, load < 375 Ω)Bronkhorst |
| Digital Communication | Standard: RS232; Options: PROFIBUS DP, DeviceNet, Modbus RTU, FLOW-BUS |
| Weight | 1.1 kgBronkhorst |
| Mounting | Any position (attitude sensitivity negligible) |
| Approvals | ATEX Cat. 3, Zone 2 (optional); RoHS compliant |
