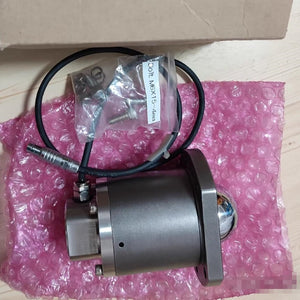

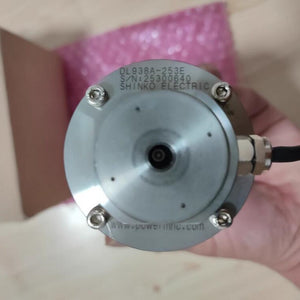

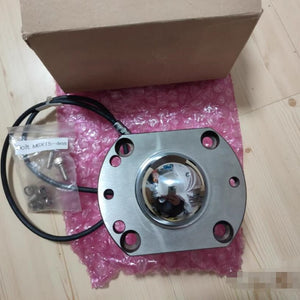

1 pc new POWERMNC GAP SENSOR DL938A-253E #LYQ007
1 pc new POWERMNC GAP SENSOR DL938A-253E #LYQ007
| Parameter | Value |
|---|---|
| Model | DL938A-253E |
| Product Name | POWERMNC GAP SENSOR (Roll Gap Sensor) |
| Manufacturer | SHINKO ELECTRIC (Shinko Electric Industries Co., Ltd.) |
| Measurement Range | 0 ~ 2.5 mm (for ferrous targets) |
| Output Signal | Analog DC: 0 ~ 2.5 mm / 1 ~ 5 V, 4 ~ 20 mA |
| Linearity | Within ±1% of Full Scale |
| Resolution | 0.5 µm |
| Frequency Response | DC ~ 10 kHz |
| Supply Voltage | DC +15 V ±10% |
| Supply Current | 45 mA or less |
| Operating Temperature | Sensor Head: -20 ~ +180 °C
|
| Target Material | Ferrous Metal (Steel) |
| Setting Gap (Nominal) | 1.25 mm ±0.5 mm |
| Protection Class | IP67 (Sensor Head) |
| Output Load Resistance | Voltage Output: ≥ 10 kΩ
|
| Temperature Drift | Within ±0.1% / °C of Full Scale |
| Insulation Resistance | ≥ 100 MΩ (at 500 V DC) |
| Dielectric Strength | 1500 V AC for 1 minute (between case and terminals) |
