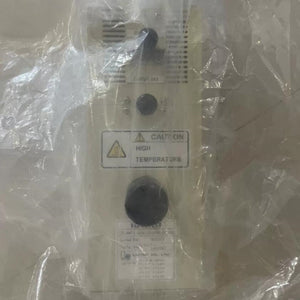

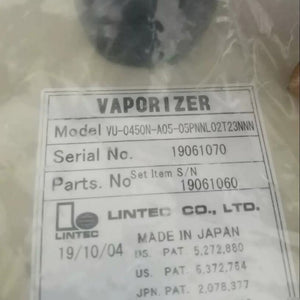

1 pc new LINTEC VU-0450N-A05-05PNNL02T23NNN Semiconductor Vaporizer #LYQ007
1 pc new LINTEC VU-0450N-A05-05PNNL02T23NNN Semiconductor Vaporizer #LYQ007
| Item | Specifications |
|---|---|
| Model | VU-0450N-A05-05PNNL02T23NNN |
| Product Type | Semiconductor Liquid Vaporizer (Vaporizer Unit) |
| Precursor Type | All type of precursor (Excluding corrosive precursors) |
| Max. Operating Temperature | 200 °C |
| Withstanding Pressure | 1 MPa (Gauge pressure) |
| External Leak Integrity | Less than 1.0 × 10⁻¹¹ Pa·m³/s (He) |
| Power Supply | L02: AC 200 to 240 V |
| Heater Power | 800 W |
| Thermal Switch | T23: Open at 230 ± 10 °C, Close at 200 ± 15 °C |
| Electrical Rating (Thermal Switch) | AC 125 V/15 A, AC 250 V/10 A (Min. 1 A) |
| Temperature Sensor | K-type Thermocouple × 1 pc |
| Recommended Control | PID Temperature Controller |
| Precursor Inlet | 3.2 mm (1/8") VCR, Female |
| Carrier Gas Inlet | 6.35 mm (1/4") VCR, Male |
| Vapor Outlet | 12.7 mm (1/2") VCR, Female |
| Wetted Materials | Stainless Steel 316L, Au, Ni-Co, Polyimide (SP-1) |
| Valve Type | A: Control valve & Shut-off valve all-in-one |
| Seal Material | N: Au (Gold) |
| Internal Surface | N: No treatment |
| Mounting Direction | Liquid inlet/gas outlet: Horizontal; Connector: Vertical up |
| Standard Accessories | Thermocouple (CMP01-K), Heater/Thermal Switch Connector (SRCN6A16-7S), LM-VU Cable (CC-LV-3-3M) |
