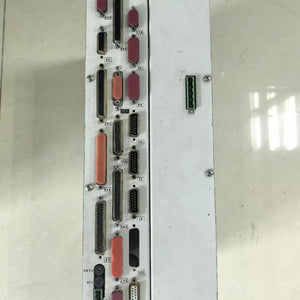

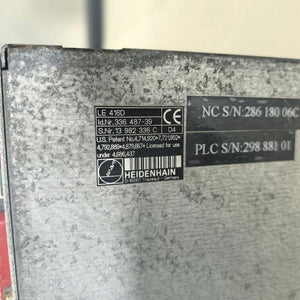

1 pc used HEIDENHAIN LE 416D (ID 336 487-39) Controller #LYQ007
1 pc used HEIDENHAIN LE 416D (ID 336 487-39) Controller #LYQ007
| Parameter | Value |
|---|---|
| Type Designation | LE 416D |
| ID Number | 336 487-39 |
| System Compatibility | TNC 416, TNC 406 CNC controls |
| Axes Configuration | 4 axes + spindle |
| Program Memory | 10,000 program blocks |
| CPU Clock Frequency | 16 MHz (calculation time ~5 µs) |
| Interpolations | Linear: 3 of 4 axes; Circular: 2 of 4 axes |
| PLC Integrated | Yes, memory for ~8000 instructions |
| Digital Inputs | 56 |
| Digital Outputs | 31 |
| Measuring System Inputs | 1 Vss (position/speed) |
| Analog Inputs | 3 × ±10 V |
| Temperature Inputs | 2 × PT100 resistance thermometers |
| Power Supply | 24 V DC ±10% |
| Power Consumption | ~150 W |
| Operating Temperature | 0 °C ... +50 °C |
| Storage Temperature | -20 °C ... +70 °C |
| Vibration Resistance | 200 m/s² (55 Hz to 2000 Hz) |
| Shock Resistance | 300 m/s² (11 ms) |
| Protection Class | IP54 (enclosure) |
| Dimensions (W×H×D) | 340 × 150 × 320 mm |
| Weight | ~8.5 kg |
| Communication | Serial RS-232, parallel I/O, Heidenhain handwheel interface |
| Mounting | Vertical rack mounting |
| Cooling | Forced air (fan in/out) |
| Standards | CE, EN 60068, EN 60529 |
1.Our company specializes in automation industrial control accessories. We have more than 100,000 products.
?Including : frequency converter, servo driver, servo motor,data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial?? computer,encoder...etc
2.We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over the world.
3.We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store may not accurate,before purchasing please contact us to provide you with exactly quote and real pictures.
4. If you can not find the product which you need in our store, please contact us. We will check it for you.
